LISN's by Laplace Instruments





LISNs are used to measure the RF conducted back down the mains lead from the unit under test (UUT). Many standards refer to a LISN as an artificial mains V-network of 50ohm/50uH as specified by CISPR16. All standard Laplace LISNs are fully compliant with this requirement in all respects for the frequency band B, 150KHz to 30MHz. Each standard LISN includes a mains RF low pass filter to reject any noise already on the mains and an effective voltage transient limiter to protect any sensitive analyzer or receiver against high energy spikes. Note that these LISNs may be used on low voltage and/or DC connections provided that the current rating is not exceeded.

  • COMPREHENSIVE - The Laplace range of LISNs provides the widest range available and covers all applications from test lab to pre-compliance, commercial to military and industrial to space satellite

  • COMPLIANCE - All Laplace LISNs are fully compliant with the appropriate standard. Specialist models are available for automotive, military and satellite standards in addition to the standard CISPR16 range.

  • PROTECTION - All standard CISPR16 LISNs are fitted with a transient limiter, protecting the sensitive input of spectrum analyzers and receivers from the inevitable high power ‘glitches’ that are present on all mains supplies.

  • PORTABILITY - A unique advantage of the Laplace range is that the Isolisn types can be used on mains supplies fitted with RCD, earth leakage detectors. Conventional CISPR16 LISNs always cause RCDs to trip.

Laplace Line Impedance Stabilization Networks

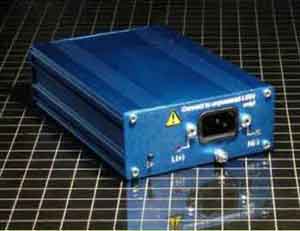

Laplace 16A LISN

The Fully Compliant Accessory For Conducted Emissions Testing



Unique, IsoLISN, option for portable use.

Transient limiters included on Standard types.

Full range of LISN's from 10 Amp up to 1000 Amp



Single and Three Phase



CISPR 16, MIL-STD-461E, Automotive and other special types



.Laplace LISN

Model Number

Current Rating (Amps)

Phases

Iso-LISN

Internal Transient limiter

Internal RF Amp

Notes

(See Below)

Size

Standard Reference

LISN-16A1P

16

L,N

-

tick

no

(1, 4, 5)

A

CISPR16



Band A

9kHz

to

30MHz

is available



Band B

150kHz

to

30 MHz

is standard

LISN-20A1PS

20

L,N

tick

tick



(2, 3, 5) Portable

B

LISN-32A1P

32

L,N

-

tick



(2, 5)

C

LISN-63A1P

63

L,N

-

tick



LISN-100A1P

100

L,N

-

tick



LISN-200A1P

200

L,N

-

tick



C

&

D

LISN-32A3P

32

L1,L2,L3,N

-

tick



LISN-63A3P

63

L1,L2,L3,N

-

tick



LISN-100A3P

100

L1,L2,L3,N

-

tick



LISN-200A3P

200

L1,L2,L3,N

-

tick



LISN-C25/25A

25

1

-

no

no

Automotive Standard 100KHz - 100MHz

E

CISPR25 / EN55025

LISN-C25/100A

100

1

-

no

no

E

LISN-C25/500A

500

1

-

no

no

F

LISN-461E/10

10

1

-

no

no

Military

20Hz-400MHz

E

MIL-STD-461E

LISN-461E/20/2

20

L,N

-

no

no

LISN-461E/20/4

20

L1,L2,L3,N

-

no

no

LISN-461E/100

100

1

-

no

no

LISN59-41/10

10

1

-

no

no

Military

20Hz-400MHz

E

DefStan 59-41

LISN59-41/100

100

1

-

no

no

LISN-ESA-16A

16

+28V/-28V

-

no

no

10Hz - 30MHz

B

ENVSAT

LISN50-200

200

L1,L2,L3,N

-

no

no

230 / 400 VAC

Optional

460 / 600 VAC

G

CISPR16

LISN50-500

500

1

-

no

no

LISN50-1000

1000

1

-

no

no

Notes

1

Switched attenuator (0, 10, 20dB) and switched 150KHz high pass filter.

2

Mains supply for internal pre-amplifier required.

3

‘S’ LISNs feature the unique IsoLISN design which complies with EN61010 and has an earth leakage current less than 5mA, avoiding the problem of RCD trips. This makes them ideal for portable applications.

4

Fitted with standard mains outlet. UK, US, Schuko and Australian models available.

5

Line selector switch fitted to all LISNs, with remote control available on all standard types.

Size

Code

W x H x D (mm)

Type

A

212 x 132 (3u) x 315

Instrument Case

B

315 x 3u x 422

Instrument Case

C

483 x 6u x 422

Instrument Case

D

483 x 9u x 522

Instrument Case

E

500 x 180 x 90

Flanged box

F

500 x 180 x 120

Flanged box

G

600 x 380 x 350

Cabinet

General Specifications

RF Output Socket:

50 ohm, BNC

Frequency Range:

Band A - 9 KHz to 30 MHz  Band B - 150KHz - 30MHz (u.o.s. above)

Insertion Loss (dB):

0 (Zero) dB, LISN16A1P, see note 1above

Source Selection:

Front panel switch and remote control.

EUT Line Connections:

LISN16A1P, see note 4
All others: Shrouded single pole sockets:
< 32A = 4mm   > 32A = 6mm

Artificial Hand Output:

All CISPR16 LISNs fitted.

Line Voltage:


Single Phase:
3 Phase:

Up to 250V AC rms
Up to 415V AC rms

Accessories

LISN-TS

External transient limiter for use with LISNs not fitted with internal transient limiter.
Insertion loss = 0dB, Bandwidth 9KHz - 400MHzMains supply required

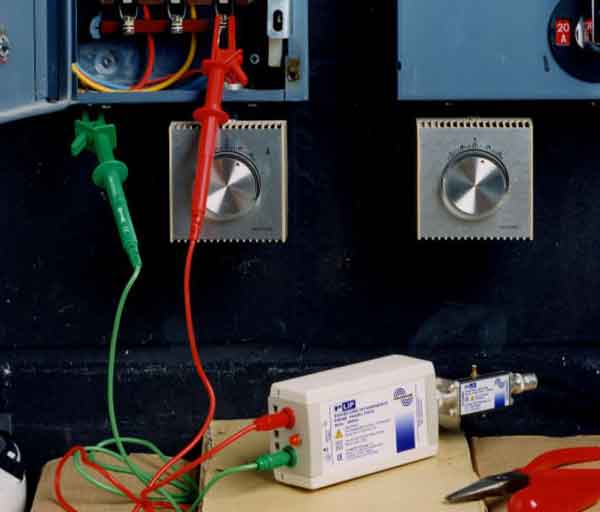

Voltage Probe

PLIP

Power Line Interference Probe..... See separate information sheet.
Complies with CISPR16.
Insertion loss nominally 0dB.
No restriction on EUT supply current
For use in circumstances when a LISN is not appropriate (e.g. current >100A, permanent installation.....)
Includes 1kV isolation, transient limiter and 30dB amplifier.

Emission Tester

PLIPMAN

Complete Portable conducted emissions tester....See separate information sheet
Includes voltage probe and emissions measuring unit giving readout of frequency and dBuV
Enables shop-floor and on-site measurements to be made easily and quickly.
Single phase and 3 phase operation (500V AC rms, max.)
Internal rechargeable batteries fitted and battery charger supplied.

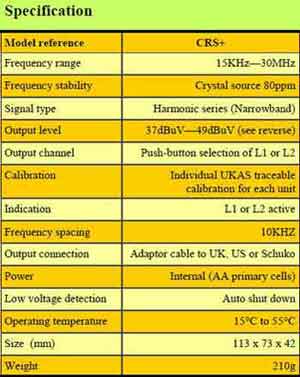

Laplace Conducted Reference Source



CRS+





DATA

The CRS+ is a stable and repeatable, wideband generator covering the EMC conducted bands A and B. It is specifically designed to check and calibrate LISNs and associated equipment. Very quick and easy to use, the CRS+ verifies that EUT measurements are valid and accurate.
Ideal for:
· Accredited test houses
· Consultancies
· Manufacturers who are self testing
· Pre-compliance testing
· Research organizations
The CRS+ simply plugs straight into the EUT outlet port on a LISN. Switch on and scan band A and/or band B on the analyzer/receiver. Comparison with the calibration data of the CRS will immediately indicate the accuracy of your system. The direct output into the LISN ensures that external noise is eliminated and no additional cabling is required. Supplied complete with batteries and one adaptor cable.
