LISN's
Solar Electronis LISN Solar Electronics Logo



Manufactured, Serviced and Recalibrated in North Hollywood CA


FCC Line Impedance Stabilization Networks
The F.C.C. in Part 15 Subpart J has adopted the 50 microhenry Line Impedance Stabilization Network (LISN) described in Figure 15 of the German Document VDE 0876/1/9.78 for use in performing conducted emission tests on power lines (10 KHz-30 MHz). (Five microhenry units are required for F.C.C. Part 18. See listing on back side of "LINE IMPEDANCE STABILIZATION NETWORKS" data sheet.) In selecting the appropriate LISN, the impedance-versus-frequency characteristic is the most important parameter to be considered. The impedance curve of the units closely matches the F.C.C. requirements.

Current ratings up to 200 amperes are available in 50 H styles and 500 amperes in 5 H styles.

Application

When measuring conducted radio interference voltages from active power lines to ground, it is essential to know the line impedance so that repeatable tests can be made by more than one laboratory. Artificial line impedances are specified in MIL-STD-462, FCC, VDE, CISPR, C22.4, NACSEM 5100, ANSI C63.2 and other EMI specifications.

The characteristic impedance of the 5 H  and 50 H  LISNs brackets the mean value of power line impedance which has been measured by independent researchers. These two inductance values in parallel with the 50 ohms of the EMI meter fall between the minimum and maximum line impedance values which have been measured. The mean value would be represented by a 20 H  inductor in parallel with 100 ohms.



Watts - Volts   Solar Catalog

Description

The Solar Electronics LISNs - Line Impedance Stabilization Network use a series inductor between the test sample and the power source to provide the impedance-versus frequency characteristic. A coaxial connector with D.C. isolation use a series inductor between the test sample and the power source to provide the impedance-versus frequency characteristic. A coaxial connector with D.C. isolation use a series inductor between the test sample and the power source to provide the impedance-versus frequency characteristic. A coaxial connector with D.C. isolation is provided for connection to the associated frequency selective EMI meter. The power source end of the inductor is bypassed to ground.

Due to the large current-carrying capability of some LISNs, it is not always practical to use a switch for changing inductance values. Instead, some models are equipped with a high current pin plug-and-jack combination for quickly connecting and disconnecting a network and substituting another. This nylon insulated pin plug and jack arrangement is a safety feature, well isolated from inadvertent short circuits, providing protection to operating personnel.




Single line units are needed in each power lead. Use two for single phase or d.c. systems; three for delta connected three-phase lines; four for Wye connected three-phase lines. LISN WYE System LISN DELTA System



Specification

Inductance

Frequency Range

FCC Part 15

50 H

10 kHz - 30 MHz

FCC Part 18

5 H or 50 H

10 kHz - 30 MHz

CISPR-16

50 H

Band A for 9 kHz to 150 kHz and Band B for 150 kHz to 30 MHz

CISPR-25

5μH

100 kHz - 100 MHz

VDE 0876-16-1-2

50 H

9 kHz - 100 MHz with 250 H choke

MIL-STD 461/462 Rev C

57 H

10 kHz  - 10 MHz, 14 kHz - 4 MHz

MIL-STD 461/462 Rev C

5 H

100 kHz - 100 MHz

MIL-STD 461/462 Rev D

50 H

150 kHz  - 100 MHz with 10 F capacitor

RTCA DO-160

5 H

100 kHz  - 400 MHz

SAE J1113

5 H

150 kHz  - 65 MHz

TEMPEST

5 H

100 kHz  - 1,000 MHz



SOLAR Line Impedance Stabilization Networks

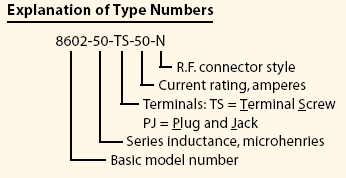

Type Number Inductance  H Current
 Amps
Line/Ground Voltage
50-60 Hz
Line/Ground Voltage
400 Hz
Case Size* Circuit Frequency Range

8615-2-TS-100-N

2

100

270

130

#1

Single

1 MHz-1 GHz

9345-5-R-10-BNC

5

10

135

N/A

#1

Dual

150 KHz-65 MHz

6516-5-TS-10-BNC

5

10

270

130

#5

Single

150 KHz-65 MHz

9403-5-TS-10-BNC

5

10

270

130

#5

Single

150 KHz-65 MHz

6338-5-PJ-50-N

5

50

270

130

#1

Single

150 KHz-65 MHz

6338-5-TS-50-N

5

50

270

130

#1

Single

150 KHz-65 MHz

9867-5-TS-50-N

5

50

270

130

#2

Single

10 KHz-400 MHz with 10 F capacitor

7333-5-PJ-50-N

5

50

500

240

#1

Single

150 KHz-65 MHz

7333-5-TS-50-N

5

50

500

240

#1

Single

150 KHz-65 MHz

9117-5-PJ-50-N

5

50

500

240

#1

Single

150 KHz-1 GHz

9117-5-TS-50-N

5

50

500

240

#1

Single

150 KHz-1 GHz

9924-5-TS-100

5

100

270

130

#3

Isolated

100 KHz-100 MHz (ISO 7637-2)

8309-5-PJ-100-N

5

100

500

240

#3

Single

150 KHz-65 MHz

8309-5-TS-100-N

5

100

500

240

#3

Single

150 KHz-65 MHz

8616-5-PJ-200-N

5

200

270

130

#3

Single

150 KHz-65 MHz

8616-5-TS-200-N

5

200

270

130

#3

Single

150 KHz-65 MHz

9351-5-TS-200-N

5

200

500

240

#3

Single

100 KHz-1 GHz, 150 Ω impedance

9706-5-TS-250-N

5

250

270

130

#3

Single

150 KHz-65 MHz

8902-5-TS-500-N

5

500

500

240

#4

Single

150 KHz-1 GHz

9845-50-BP-10-BNC

50

10

135

N/A

#1

Dual

10 KHz-30 MHz, binding posts, no switch

9911-50-R-10-BNC

50

10

135

N/A

#1

Dual

10 KHz-50 MHz

8611-50-TS-10-N

50

10

270

130

#2

Single

10 KHz-30 MHz with 250 μH choke

9622-50-BP-10-BNC

50

10

270

120

#1

Single

10 kHz - 50 MHz, binding posts, 0.25 μF coupling capacitor

9322-50-R-10-BNC

50

10

270

130

#7

Dual

10 KHz-50 MHz

9517-50-R-10-BNC

50

10

270

130

#7

Dual

10 KHz-50 MHz with 250 H choke

9913-50-TS-10-BNC

50

10

270

130

#7

Dual

10 KHz-50 MHz, 6-32 threaded terminals

9608-50-BP-10-BNC

50

10

500

240

#7

Dual

10 KHz-50 MHz, binding posts, no switch

9622-50-BP-10-BNC

50

10

500

240

#1

Single

10 KHz-50 MHz

8012-50-R-24-BNC

50

24

135

N/A

#1

Dual

10 KHz-50 MHz

9409-50-R-24

50

24

135

N/A

#2

Dual

6 Output Auxiliary, no RF connector

9857-50-BP-24-BNC

50

24

135

120

#1

Dual

10 KHz-50 MHz, binding posts, no switch

8028-50-TS-24-BNC

50

24

270

130

#1

Single

10 KHz-50 MHz

9252-50-R-24-BNC

50

24

270

130

#7

Dual

10 KHz-50 MHz, 0.25 F coupling capacitor

9348-50-R-24-BNC

50

24

270

130

#7

Dual

10 KHz-50 MHz with 250 H choke

9861-50-BP-24-BNC

50

24

270

130

#7

Dual

10 KHz-50 MHz, binding posts, no switch

9408-50-R-24-BNC

50

24

500

240

#7

Dual

10 KHz-50 MHz

9509-50-R-24-BNC

50

24

500

240

#7

Dual

10 KHz-50 MHz with 250 H choke

9615-50-R-25-BNC

50

25

270

130

#7

Dual

10 KHz-30 MHz, air coil

9623-50-TS-25-BNC

50

25

270

130

#1

Single

10 KHz-30 MHz, air coil

9629-50-TS-25-BNC

50

25

500

240

#1

Single

10 KHz-30 MHz

8328-50-PJ-50-N

50

50

270

130

#3

Single

10 KHz-50 MHz, 0.1 F coupling capacitor

8328-50-TS-50-N

50

50

270

130

#3

Single

10 KHz-50 MHz, 0.1 F coupling capacitor

8602-50-PJ-50-N

50

50

270

130

#4

Single

10 KHz-50 MHz with 250 H choke

8602-50-TS-50-N

50

50

270

130

#4

Single

10 KHz-50 MHz with 250 H choke

8905-50-TS-50-N

50

50

270

130

#3

Single

10 KHz-200 MHz

9233-50-PJ-50-N

50

50

270

130

#3

Single

10 KHz-50 MHz, 0.25 F coupling capacitor

9233-50-TS-50-N

50

50

270

130

#3

Single

10 KHz-50 MHz, 0.25 F coupling capacitor

9632-50-TS-50-N

50

50

270

130

#3

Single

10 KHz-50 MHz, high wattage for GM spec

9847-50-TS-50-N

50

50

270

130

#3

Single

with 20 pF capacitor

9247-50-TS-50-N

50

50

500

240

#3

Single

10 KHz-50 MHz, 0.1 F coupling capacitor

8116-50-PJ-100-N

50

100

270

130

#3

Single

10 KHz-30 MHz

8116-50-TS-100-N

50

100

270

130

#3

Single

10 KHz-50 MHz

9702-50-TS-100-N

50

100

270

130

call

Single

10 KHz-50 MHz with 250 H choke

8610-50-PJ-100-N

50

100

500

240

#3

Single

10 KHz-30 MHz

8610-50-TS-100-N

50

100

500

240

#3

Single

10 KHz-30 MHz

8616-50-PJ-200-N

50

200

270

130

#3

Single

10 KHz-50 MHz

8616-50-TS-200-N

50

200

270

130

#3

Single

10 KHz-50 MHz

9331-50-TS-200-N

50

200

500

240

#3

Single

10 KHz-50 MHz

9331-50-PJ-200-N

50

200

500

240

#3

Single

10 KHz-50 MHz

6516-57-TS-10-BNC

57

10

270

130

#6

Single

14 KHz-4 MHz

6338-57-PJ-50-N

57

50

270

130

#2

Single

14 KHz-4 MHz

6338-57-TS-50-N

57

50

270

130

#2

Single

14 KHz-4 MHz

7333-57-PJ-50-N

57

50

500

240

#2

Single

14 KHz-4 MHz

7333-57-TS-50-N

57

50

500

240

#2

Single

14 KHz-4 MHz

6330-100-PJ-50-N

100

50

270

130

#3

Single

10 KHz-4 MHz

6330-100-TS-50-N

100

50

270

130

#3

Single

10 KHz-4 MHz

8116-100-PJ-100-N

100

100

270

130

#3

Single

10 KHz-4 MHz

8116-100-TS-100-N

100

100

270

130

#3

Single

10 KHz-4 MHz

8410-250-R-24

250

24

270

130

#1

Dual

with 250 H choke network with AC receptacle for use
with 8012-( ) and 9252-( ) for VDE applications

8907-250-TS-24

250

24

270

130

#1

Dual

with 250 H choke network with AC receptacle for use
with 8012-( ) and 9252-( ) for VDE applications

6330-250-PJ-50-N

250

50

270

130

#3

Single

8 KHz-4 MHz

6330-250-TS-50-N

250

50

270

130

#3

Single

8 KHz-4 MHz

8116-250-PJ-100-N

250

100

270

130

#3

Single

8 KHz-4 MHz

8116-250-TS-100-N

250

100

270

130

#3

Single

8 KHz-4 MHz

6330-600-PJ-50-N

600

50

270

130

#3

Single

7.5 KHz-5 MHz

6330-600-TS-50-N

600

50

270

130

#3

Single

7.5 KHz-5 MHz

7225-1

650

10

270

130

#1

Single

10 KHz-400 MHz (useable up to 1 GHz)

9106-1300-N-10-N

1300

10

270

130

#1

Single

10 KHz-1 GHz



 With 50 or 60 Hz Ventilating Fan; add 7.09" (18.00 cm)

Add 3" (7.62 cm) for Base Plate

*Case Sizes

 Width x Height x Length

#1:

4.5" x 4.5" x 9.25" (11.43 cm x 11.43 cm x 23.5 cm)

#2:

7.0" x 7.0" x 8.25" (17.78 cm x 11.78 cm x 24.13 cm)

#3:

10.06" x 9.0" x 13.12" (25.72 cm x 22.86 cm x 33.34 cm)

#4:

7.53" x 7.63" x 18.97" (19 cm x 19.43 cm x 48.26 cm)

#5:

3.12" x 1.75" x 3.87" (7.94 cm x 4.44 cm x 9.84 cm)

#6:

2.75" x 2.45" x 5.7" (6.98 cm x 6.22 cm x 14.48 cm)

#7:

13.06" x 7.0" x 10.06" (33.20 cm x 17.78 cm x 25.55 cm)

Note: Unless otherwise specified, 5μH LISNs have 0.1f coupling caps; 50μH have 0.25f coupling caps
