Hybrid Log Periodic Antennas



Picture / Webpage

Model

Features

TDK RF Solutions

High Power Broadband Antenna



 HPBA-2510



25 MHz - 100 MHz



3,500 Watts CW &

10,000 Watts CW



DATA

  • Very high power handling - 3500W maximum (10,000W model also available) Low 2.5:1 VSWR (average); 5.8:1 VSWR (maximum)

  • Improved impedance matching

  • Can be used alone or in arrays (with optional high power hybrid network)

  • Immunity Measurements

  • MIL-STD 461

  • SAE J1113/ISO 11452

  • SAE J551/ISO 11451

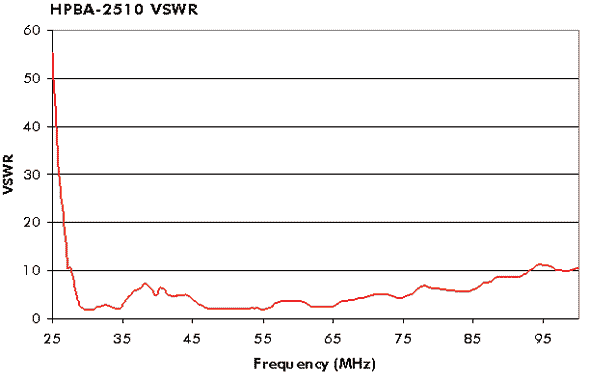

HPBA-2510 VSWR

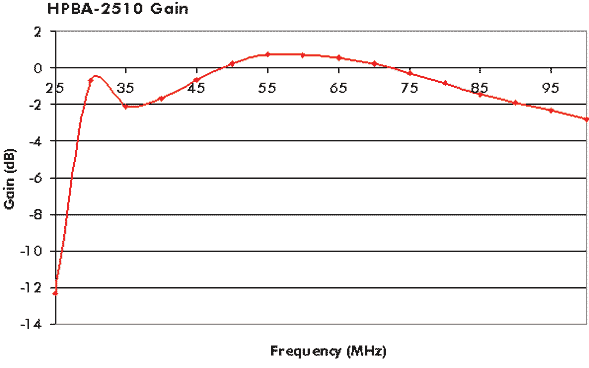

HPBA-2510 Gain

HPBA-2510 VSWR

TDK RF Solutions

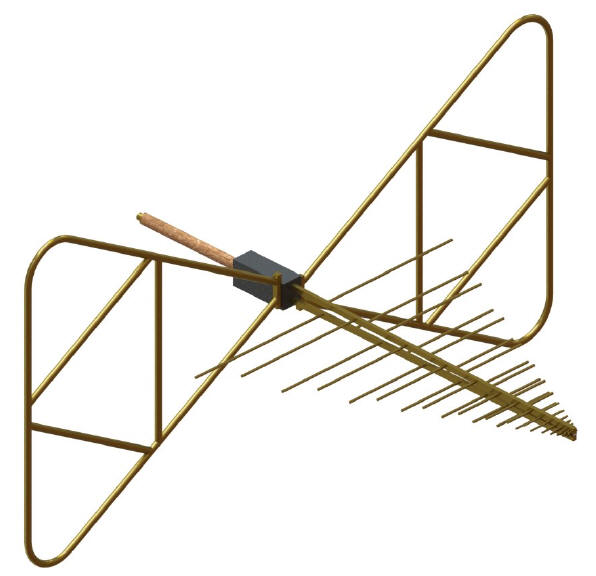

Hybrid Log Periodic Antenna

HLP-2601



26 MHz - 1 GHz



3,500 Watts CW



DATA

  • High Gain

  • Low VSWR

  • High capacity power input

  • Quality construction

  • Provides significantly improved performance over competing designs

  • Individually calibrated according to ANSI C63.5 with signed certificate of calibration

TDK RF Solutions

Hybrid Log Periodic Antenna

HLP-2603



26 MHz - 3 GHz



1,000 Watts CW



DATA

  • High Gain

  • Low VSWR

  • Ultra broadband

  • High capacity power input

  • Quality construction

  • Provides significantly improved performance over competing designs

TDK RF Solutions

Compact Hybrid Log Periodic


HLP-3003C



30 MHz - 3 GHz



100 Watts CW



DATA

  • Moderate power handling capability

  • Efficient design especially suited for compact chambers

  • Shortest antenna length available for the operating frequency range

  • Unique low frequency hybrid element extends performance

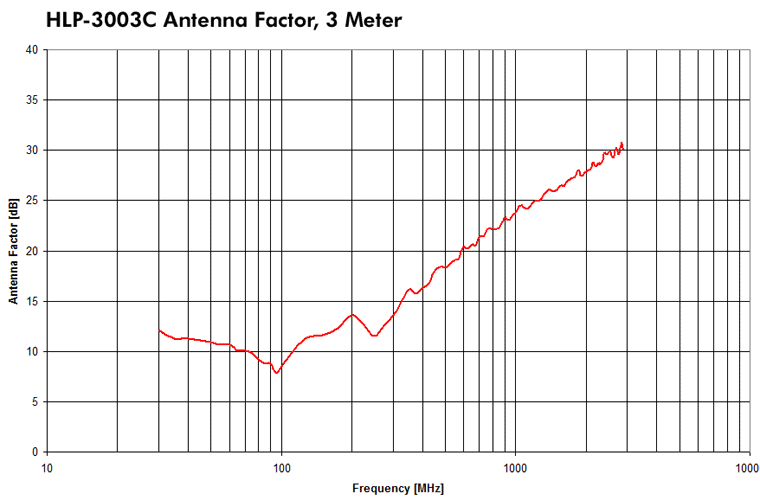

HLP-3003C Antenna Factor, 3 Meter

Power vs. Frequency

JB Antenna Power vs. Frequency (Click to Enlarge)

1kw (30-200 MHz)
500 watts @ 1 GHz
300 watts @ 2 GHz
250 watts @ 3 GHz
200 watts @ 5 GHz
170 watts @ 6 GHz




Combination Antenna


 Model JB6

30 MHz - 6 GHz

Available



Calibrated (Antenna Specific Data)



or



Uncalibrated (Typical Antenna Data)







JB Series antennas are compact, high-performance instruments designed for EMC emissions and immunity testing.  The broadband characteristics of these antennas enable them to operate over a wide frequency range - a must for automated test environments.  Innovative design and manufacturing techniques result in long-lasting strength and mechanical integrity.  The result is an electrically stable measuring instrument that maintains calibration over extended use.

The antenna boom is made from a custom aluminum extrusion that reduces the number of parts at the nose.  The result is a stronger, more stable feed point and excellent cross-polarization properties.  The unique shape allows for a larger feed cable to be used, which significantly increases the maximum power rating.  Dipole elements are permanently attached to the boom by an assembly technique that maintains excellent electrical characteristics for the life of the antenna.

The low-frequency wings are swept forward and turned in at the ends to reduce ground plane coupling while maintaining performance.  Each wing is attached with dual compression fittings for true alignment.  A tough powder coat finish with UV inhibitors seals the aluminum structure and protects it from sunlight and moisture.


Specifications

Impedance 50 ohms nominal
Connector Type N female
VSWR <2:1 above 200 MHz
Polarization Linear
Max. Power 200 watts min. CW
Length 51 in. (131 cm)
Width 19 in. (48 cm)
Height (V) 44 in. (112 cm)
Weight 10 lbs. (5 kg)
Wing mount Dual compression fitting
Mounting Tube 22 mm dia. st. steel
Finish Orange powder coat
Calibration 3 & 10 meter

Includes individual A2LA accredited calibration



Sunol HC1 Carrying Case for JB Series Antennas

HC1 Carrying Case





Combination Antenna


Model JB1    30 MHz to 2 GHz
Model JB3    30 MHz to 3 GHz
Model JB5    30 MHz to 5 GHz
Model JB6    30 MHz to 6 GHz


Available



Calibrated (Antenna Specific Data)



or



Uncalibrated (Typical Antenna Data)



DATA

Radiation Patterns



JB1

Typical Antenna Data

JB3

Typical Antenna Data



Specifications

Impedance 50 ohms nominal
Connector Type N female
VSWR <2:1 above 200 MHz
Polarization Linear
Max. Power 200 watts min. CW
Length 51 in. (131 cm)
Width 19 in. (48 cm)
Height (V) 44 in. (112 cm)
Weight 10 lbs. (5 kg)
Wing mount Dual compression fitting
Mounting Tube 22 mm dia. st. steel
Finish Orange powder coat
Calibration 3 & 10 meter

Includes individual A2LA accredited calibration
