Horn Antennas - RF and Microwave

TDK RF Solutions  Q-par

Sunol Sciences, TDK RF Solutions and TMC Design Antenna Division, are committed to providing the finest antennas available to meet your requirements. They specialize in high power, airborne and ground based military Electronic Warfare antennas but produce a wide variety of commercial and industrial antennas as well.

If you do not find an antenna for your application, call or email us for a fast friendly quote on a custom design.








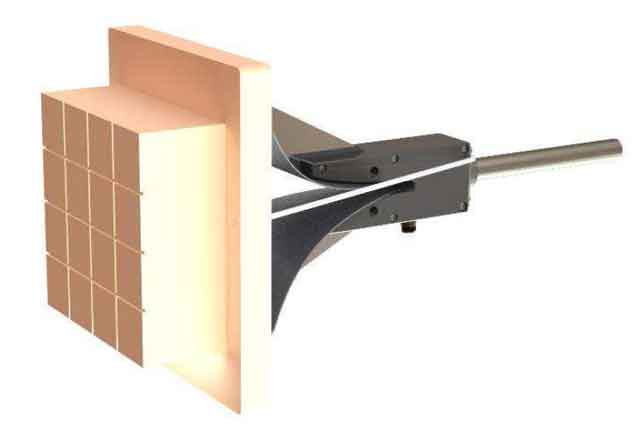

 Wide Band Horn Antennas


Model

Features


1-8ghz high power horn antenna

Frequency 1 - 8 GHz



Steatite Q-par Logo

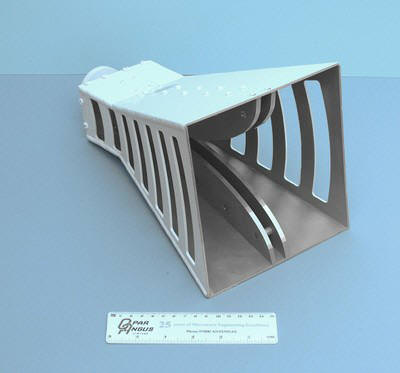

Wideband Horn Antennas





These multi-Octave range wideband horns offer an unrivalled facility for measurements, evaluation and electronic surveillance.



The band of 0.5 GHz to 18 GHz

 can be covered with only 2 to 4 wideband horn antennas.



Horn Antenna Catalog



Wideband Horn Selection



Wideband Horn Features

  • Connector - SMA or N type (others available, please contact us for details)
  • A full wideband horn antenna test report including gain against frequency is provided with each horn
  • Ideal for spectrum monitoring and surveillance, and EMC applications
  • Wideband horns are normally fitted with an integrated coaxial to waveguide adaptor, but can also be supplied with just a waveguide flange - including WRD ridged waveguide.
  • Broadband Ridged Horns that are compatible with WRD ridged waveguide can also be supplied with a waveguide flange
  • All wideband horns are fitted with a convenient mounting plate and optionally with an aperture window to prevent ingress of moisture

Dimensions

Horn Dimensions
All dimensions are nominal and measured in mm.

Many other standard wide band horns are available, or we can design a horn to your specification.

Please include required gain/beamwidth, frequency range, size etc with your enquiry.

The 3 dB beamwidths are always specified so that the the first figure refers to the lowest frequency in the operating band.


Model

Frequency GHz

Power (CW)

Connector

Gain dBi

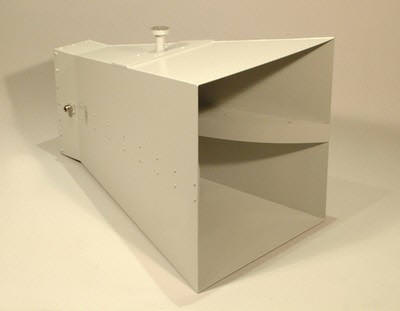

0.5-2GHz Horn

WBH0.5-2N

0.5 - 2.0

250 W

N-type

8 - 13.5

0.5-2GHz Horn

WBH0.5-2N13

0.5 - 2.5

250 W

N-type

7.4 - 14.5

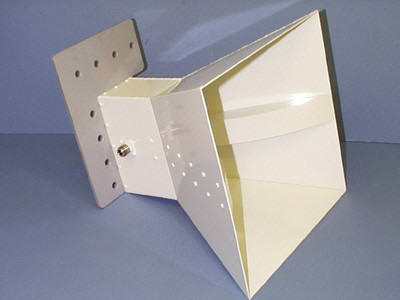

WBH1-2#10

1.0 - 2.0

300 W

N-type, SMA

8.2 - 12.1

1-8 high power horn

WBH1-8#10HP

1.0 - 8.0

1.5 kW

7/8" IEC female, others available

5.5 - 16.8

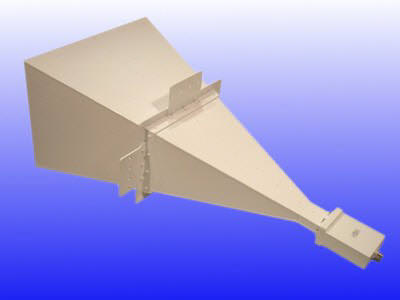

WBH2-4#17

2.0 - 4.0

10 kW peak
750 W mean

WRD200 Flange

16.4 - 18.1

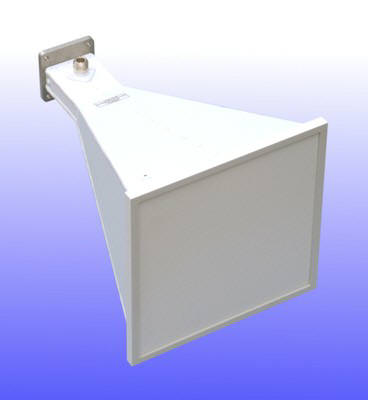

WBH2-8#13

2.0 - 8.0

100 W
(N-type) 800 W  (7/16)

N-type, SMA, 7/16 (High Power)

11 - 15

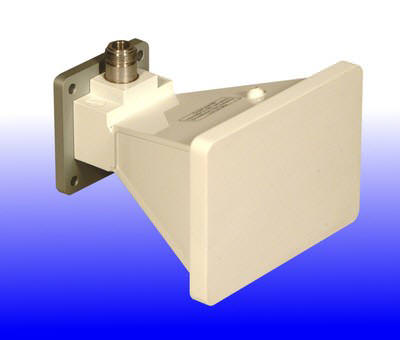

WBH2-18 NewPic

WBH2-18#

2.0 - 18.0

50 W

N-type, SMA

7 - 13

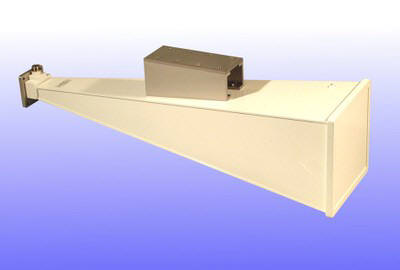

2-18HG NewPic

WBH2-18#HG

2.0 - 18.0

80 W

N-type, SMA

10 - 20

4-8 GHz EMC atenna

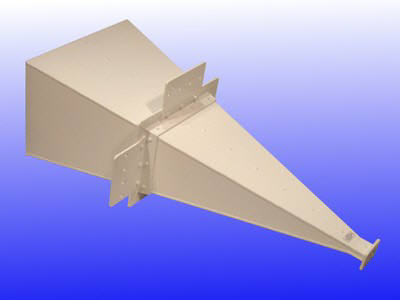

WBH4-8#20 4.0 - 8.0 2 kW WRD350 Flange, N-type, SMA 17 - 20.9

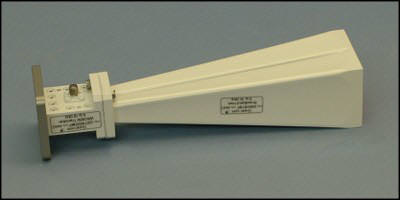

6.5-18 WBH WBH6.5-18#17 6.5 - 18.0 50 W WRD650 Flange or SMA transition 8.8 - 17
WBH8-18#20 8.0 - 18.0 2 kW WRD750 Flange, N-type, SMA 20.2 - 21.4

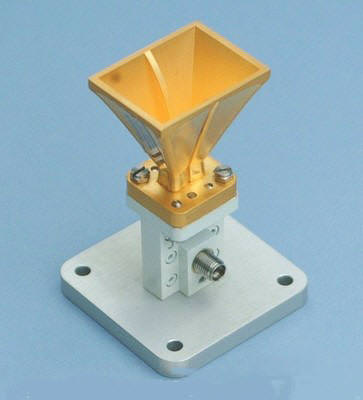

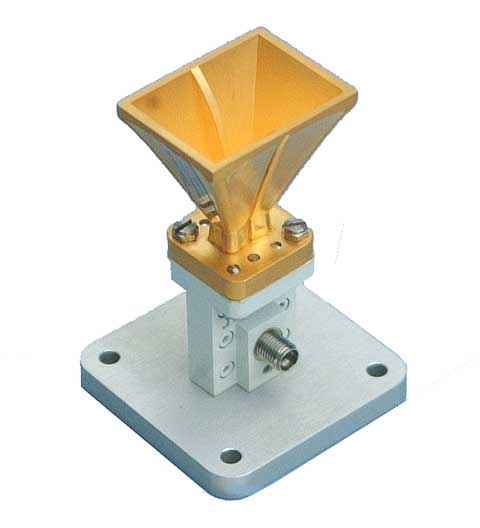

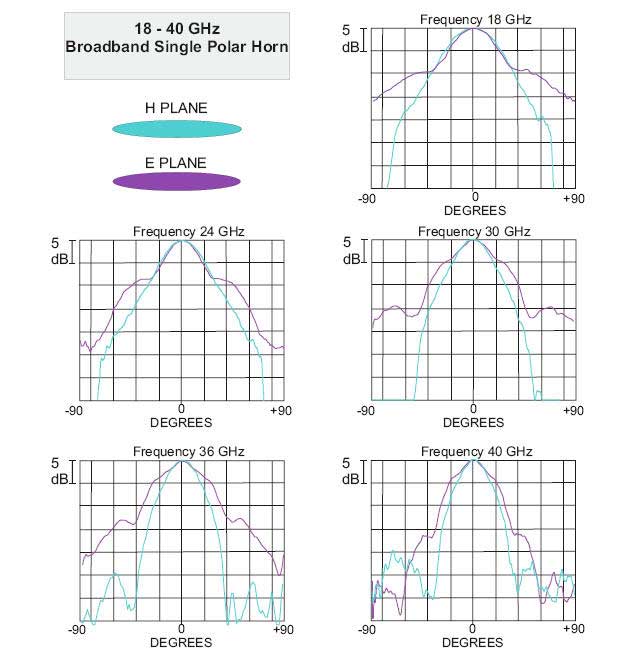

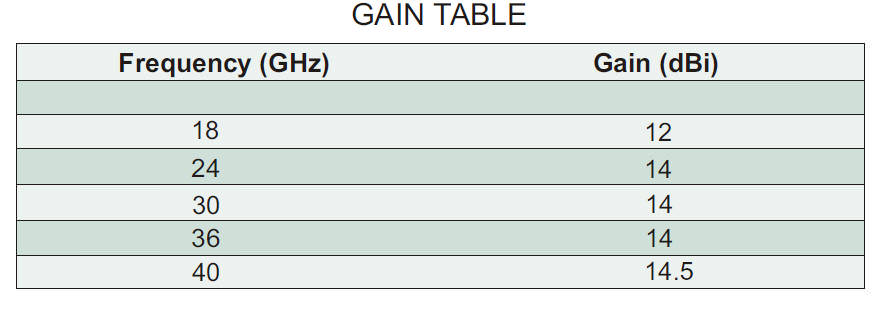

WBH18-40K_image

WBH18-40 18.0 - 40.0 40 W
(K-type) 200 W (Flanged version)
K-type transition or WRD180 Flange 12 - 14

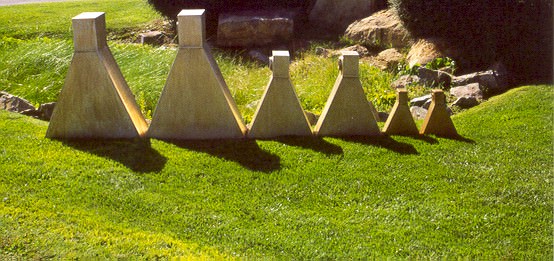

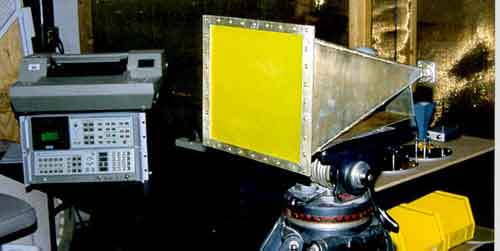

 Optimum Gain Horn Antennas


Model

Features





HO Series



Optimum Gain Horn Antennas



Wide & Narrow Bandwidth
Rugged Construction


Gain to 24 dB


Linear Polarization

VSWR 2:1

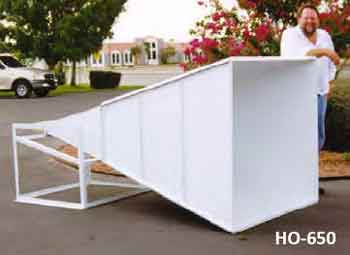

TMC Design Corporation offers optimum gain horn antennas covering the frequency spectrum from 1.12 GHz to 18 GHz in wave guide bandwidths. These antennas offer high gain in a very durable horn antenna. Many are available with the optional tripod mounts and the lower frequency horns as highly portable (HP) designs with removable side panels.



Power Handling:

500  watts CW with N-Type connector (standard)

1500 watts CW with waveguide connector



Model

Frequency - GHz

Gain - dB

Beamwidth (degrees)

HO-650-S

1.12-1.70

10

30x90

HO-650-18

1.12-1.70

18

20x20

HO-650-20

1.12-1.70

20

15x15

HO-650-24

1.12-1.70

24

10x10

HO-430-S

1.70-2.60

10

30x90

HO-430-18

1.70-2.60

18

20x20

HO-430-20

1.70-2.60

20

15x15

HO-430-24

1.70-2.60

24

10x10

HO-284-S

2.60-3.95

10

30x90

HO-284-18

2.60-3.95

18

20x20

HO-284-20

2.60-3.95

20

15x15

HO-284-24

2.60-3.95

24

10x10

HO-187-S

3.95-5.85

10

30x90

HO-187-20

3.95-5.85

20

15x15

HO-187-24

3.95-5.85

24

10x10

HO-137-RH

5.85-8.20

8

30x120

HO-137-S

5.85-8.20

10

30x90

HO-137-20

5.85-8.20

20

15x15

HO-137-24

5.85-8.20

24

10x10

HO-112-RH

7.05-10.0

8

30x120

HO-112-S

7.05-10.0

10

30x90

HO-112-18

7.05-10.0

18

20x20

HO-112-20

7.05-10.0

20

15x15

HO-112-24

7.05-10.0

24

10x10

HO-90-RH

8.20-12.40

8

30x120

HO-90-S

8.20-12.40

10

30x90

HO-90-18

8.20-12.40

18

20x20

HO-90-20

8.20-12.40

20

15x15

HO-90-24

8.20-12.40

24

10x10

HO-75-24

10.0-15.0

24

10x10

HO-62-24

12.40-18.00

24

10x10

Model

Dimension A (inches)

Dimension B (inches)

Dimension L (inches)

Weight (Pounds)

HO-650-18

28

24

46

37.7

HO-650-20

38

33

64

67.6

HO-650-24

60

52

105

166 (HP-108)

HO-430-18

18

16

30

15.8

HO-430-20

25

22

42

28.2

HO-430-24

40

34

72

72.3

HO-284-18

12

10

20

7.0

HO-284-24

16

14

28

11.9

HO-284-24

26

22

47

32.3

HO-187-20

11

10

19

5.8

HO-187-24

18

15

32

15.1

HO-137-20

8

7

13

2.89

HO-137-24

12

11

22

6.7

HO-112-24

10

8.5

18

4.5

HO-90-20

5

4

9

1.2

HO-90-24

8

7

15

3.0

HO-75-24

7

6

12

2.1

HO-62-24

6

5

10

1.5



Double-Ridge Waveguide Horns


Model

Features

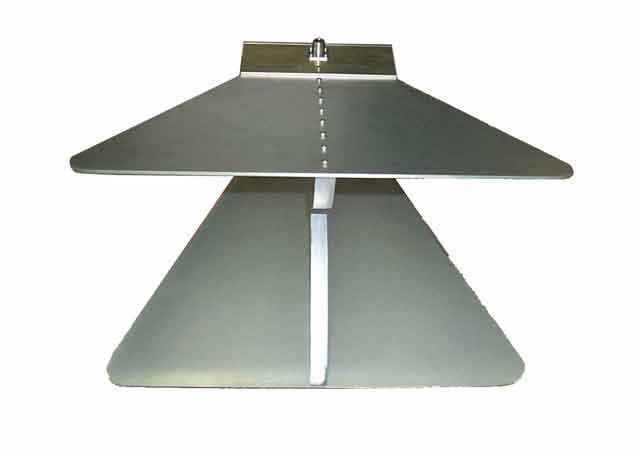

HRN-5005 (500 MHz to 5 GHz Horn)



Double-Ridge Horn Antenna



HRN-5005



500 MHz to 5 GHz



500 Watts



DATA

TDK RF Solutions’ HRN-5005 Horn Antenna is designed specifically for radiated emissions and immunity measurements in EMC test environments. The HRN-5005 provides optimal performance over the frequency range of 500 MHz to 5 GHz.

  • VSWR: <1.5:1 average

  • Polarization: Linear

  • Power handling: 500 W

  • Feed point Impedance: 50 ohm (nominal)

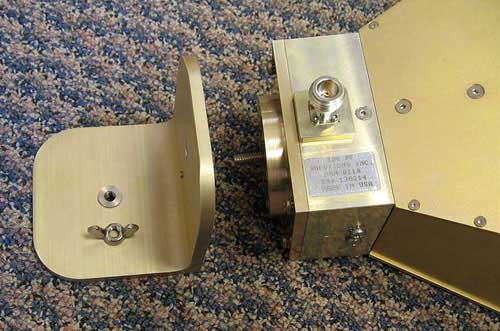

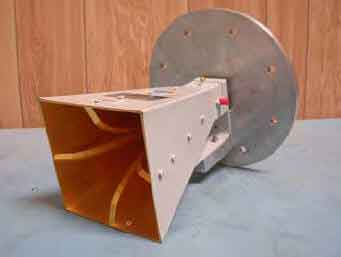

Swivel Mount Bracket



Double-Ridge Horn Antenna



HRN-0118



1 GHz to 18 GHz



300 Watts



DATA

TDK RF Solutions’ HRN-0118 Horn Antenna is designed specifically for radiated emissions and immunity measurements in EMC test environments. The HRN-0118 provides optimal performance over the frequency range of 1 GHz to 18 GHz.

  • VSWR: <1.5:1 average

  • Polarization: Linear

  • Power handling: 300 W

  • Feed point Impedance: 50 ohm (nominal)

  • Width: 25 cm (9.8 in.)

  • Depth: 30 cm with mounting bracket (11.8 in.); 21 cm without bracket

  • Height: 15 cm (5.9 in)

  • Weight: 1.8 kg (4 lbs.)

  • Construction: Aluminum with a gold chromate finish

  • RF Connector: Type N female

  • Warranty: 1 year

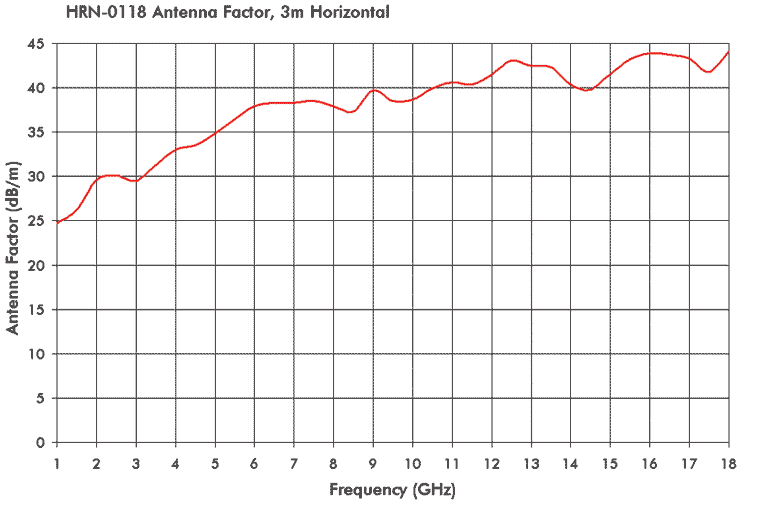

HRN-0118 Antenna Factor - 3m Horizontal

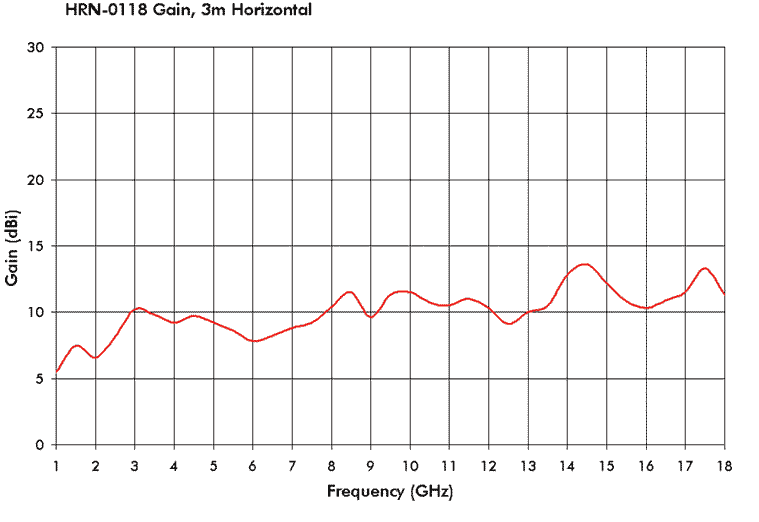

HRN-0118 Gain - 3m Horizontal

Sunol DRH-118 1 to 18 GHz Horn



Double-Ridge Horn Antenna



Model: DRH-118



1 GHz to 18 GHz



300 Watts



Available

Calibrated (Horn Specific Data)

or

Uncalibrated (Typical Horn Data)



DATA



Sunol Sciences DRH-118 is designed for emissions and immunity testing for the EMC test market. The DRH-118 provides optimal performance over the frequency range of 1 GHz to 18 GHz.

  • "L" Bracket included for Vertical & Horizontal Polarization

  • Construction: Aluminum

  • RF Connector: Type N female

  • Warranty: 2 year

Model

DRH-118

Frequency:

1 - 18 GHz

Impedance:

50 Ω nominal

VSWR:

< 1.5:1 average

Connector:

Type N female

Polarization:

Linear

Max. Power:

300 watts

Length:

9 in. (23 cm)

Width:

9.5 in. (24 cm)

Height:

6 in. (15 cm)

Weight:

4 lbs. (1.8 kg)

Mount:

¼-20 tripod mount

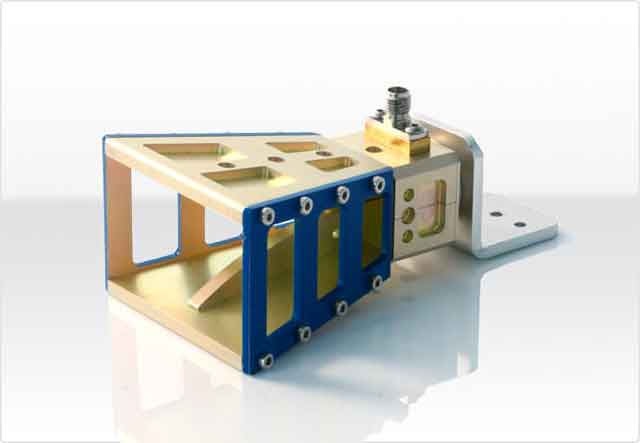

Double-Ridge Horn



Model: DRH-1840



18 GHz to 40 GHz



20 Watts CW (with K adapter)



200  Watts (K adapter removed)





DATA

DRH-1840 is designed for emissions and immunity testing for the EMC test market. The DRH-1840 provides optimal performance over the frequency range of 18 GHz to 40 GHz.
  • Frequency Range of 18 GHz to 40 GHz

  • Receive and Transmit

  • Individually Calibrated or Typical Calibration Data

  • FCC, MIL-STD, VDE and TEMPEST Testing


Model

DRH-1840

Frequency:

18-40 GHz

Impedance:

 50

VSWR:

< 1.3 : 1, (< 1.8 : 1 with K adapter)

Connector:

Type K female and WRD-180 Flange

Polarization:

Linear

Max. Power:

200 watts (without K adapter)

20 watts (with K adapter)

Length:

1.4 in. (35 mm)

Width:

1.1 in. (28 mm)

Height:

1.5 in (38 mm)

2.87 in. (73 mm) with K adapter

Weight:

0.18 lb. (80g)

0.31 lb. (140 g)

Mount:

WRD-180 or Mounting Plate
