High Performance RF Shielded Tents


Model

Description / Features

High Performance RF Shielded Tent

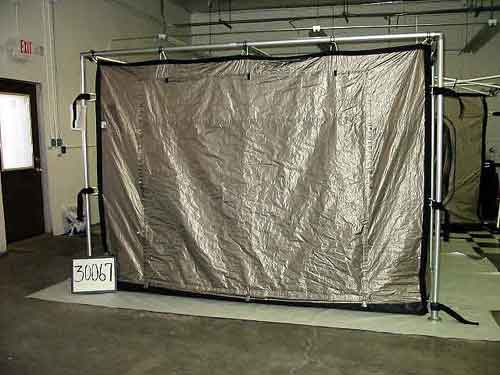

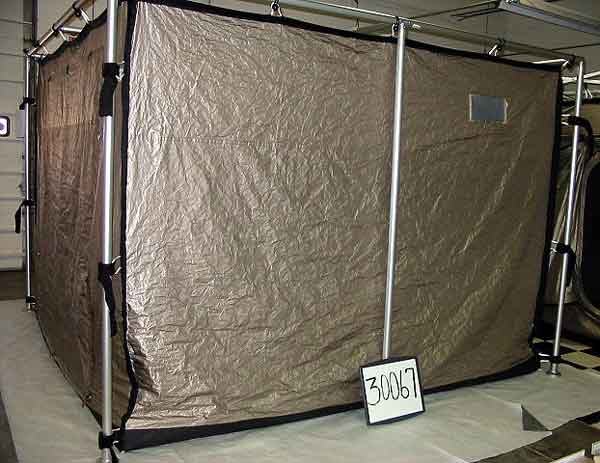

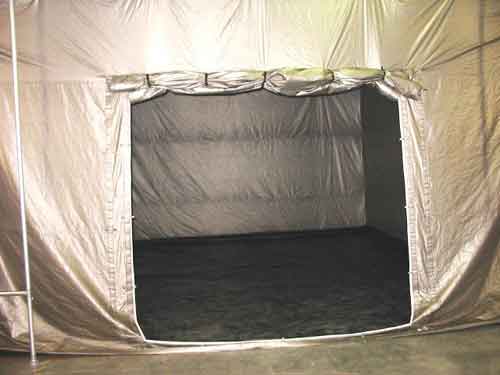

Pictured with Series 500 Frame and New Magnetic Seal Rollup Door





SELECT’s Industry Leading High Attenuation RF Signal Security Tents are designed for secure communications applications where maximum signal attenuation is required.



Easy to set up and dismantle





EZ-Up (Series 100) Frame

or

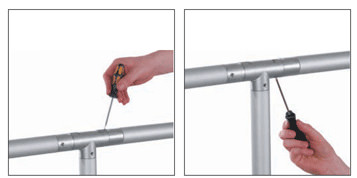

Round HD (Series 500) Easy Assemble Frame





Certified > 85 dB

Shielding Attenuation

From 400 MHz to 18 GHz





DATA



Get Quote

Made in the USA of US materials.
Standard Select-A-Shield High Attenuation Portable Tent Enclosures include:
• Multiple layers of Nova Select™ conductive fabric
• White ESD fabric layer inside tent
• Vestibule entryway system
• SELECT’s exclusive patent pending door system
• Series 500 aluminum frame
• High performance power & data filtering
• Complete shielded ventilation system
• RF shielded floor between two layers of heavy duty tarp
• Tent storage and transit bag
• Complete installation instructions



STANDARD OPTIONS:
• Motion-detection interior EMI hardened lighting inside vestibule
• LED and EMI hardened lighting
• Cable Sleeves
• Power and data filters configured to customer requirements
• Air-conditioning
• Shielding effectiveness certification by independent test lab
• Components can be configured to fit in secure hardshell transit cases
• Alternative frame styles
• Alternative tent layout configurations to meet customer defined C4ISR specifications

Vestibule for Convenient and Secure Entry and Exit

Contain signal leakage with vestibule entryways designed as either an interior part of the tent’s footprint or as an exterior extension from the main tent. Placement of a vestibule is typically in the front right hand corner, but is easily configured to customer requirements. Select-A-Shield High Attenuation RF EMI Tents with vestibule are portable, collapsible and durable.

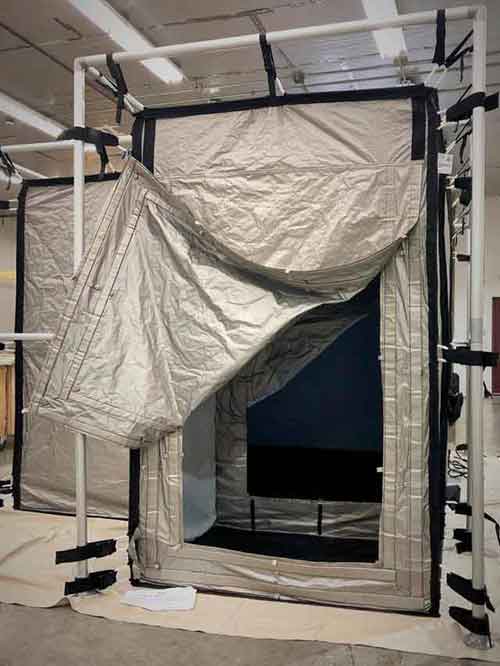

Vestibule can protrude out from the tent or be incorporated inside the perimeter

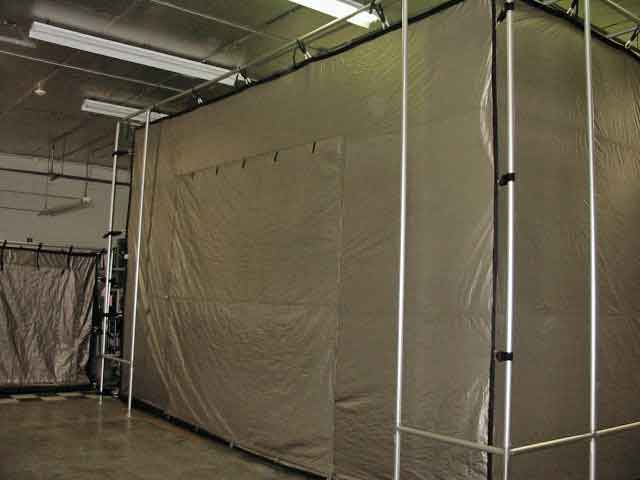

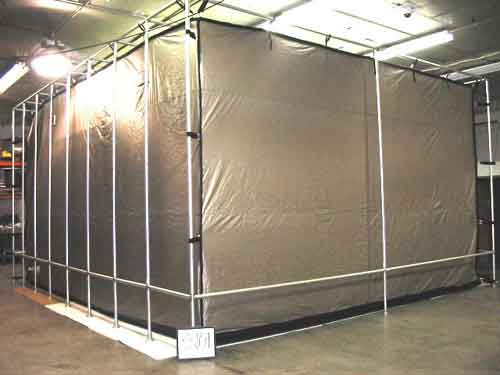

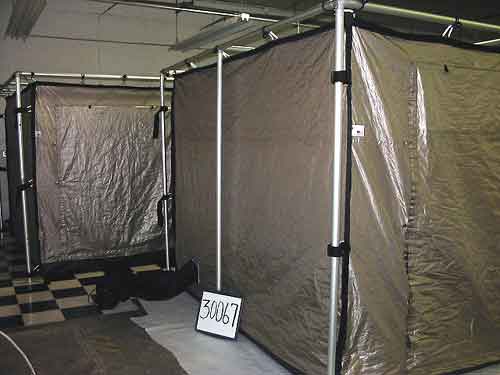

High Attenuation RF Shielded Tent, Fully Assembled, Certification

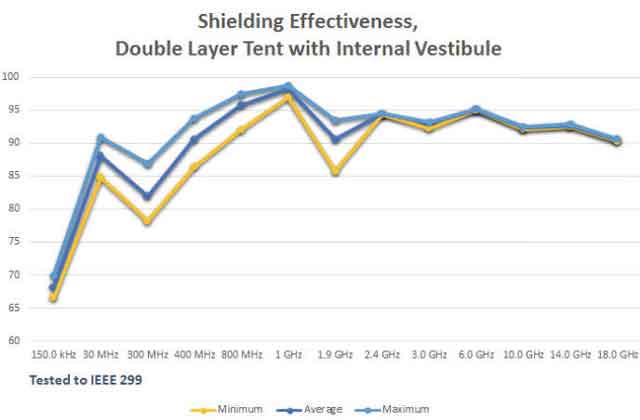

High Performance Shielding Attenuation Chart

High Attenuation RF EMI Shielding Tent Enclosure Tested to IEEE® 299-2006 Test Standard

Testing results include a -98.9 dB average attenuation at commonly used cellular and Wi-Fi frequencies was certified in testing to IEEE® 299-2006 of a complete tent enclosure system including all installed components. Minimum signal attenuation of -85 dB minimum at designated frequencies from 30 MHz to 10 GHz can be certified by an independent test lab report.

EMI Shielded Tent Standard Features:

•Multiple layers of Nova Select™ conductive fabric
• White ESD fabric layer inside tent
• Vestibule entryway system
• SELECT’s exclusive patent pending door system
• Series 500 aluminum frame
• High performance power & data filtering
• Complete shielded ventilation system
• RF shielded floor between two layers of heavy duty tarp
• Tent storage and transit bag
• Complete installation instructions

Series 100

EMI Shielded Tent Options:

• Motion-detection interior EMI hardened lighting inside vestibule
• LED and EMI hardened lighting
• Cable Sleeves
• Power and data filters configured to customer requirements
• Air-conditioning
• Shielding effectiveness certification by independent test lab
• Components can be configured to fit in secure hardshell transit cases
• Alternative frame styles
• Alternative tent layout configurations to meet customer defined C4ISR specifications





RF Shielded Fabric

NOVA SELECT (Single Layer)     Ag/Cu/Ni, URE-coated RipStop Nylon     Made in USA



Purpose:

Conductive gasket skin, tent and cable shielding



Description:

Ag/Cu/Ni, URE-coated ripstop nylon fabric



Surface Resistivity:

 0.005 ohms/□ Max – average 0.004 ohms/□



Shielding Effectiveness:

Average 85 dB from 30 MHz to 1 GHz



Abrasion Resistance:

1,000,000 cycles



Temperature Range:

-30º C to 90º C



Total Thickness:

0.130 mm (.0048”) nominal

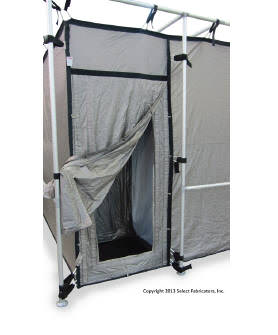

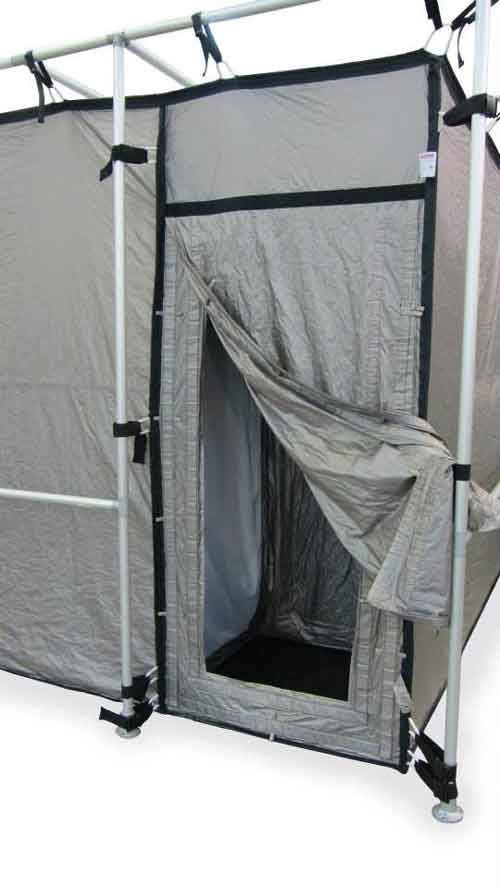

RF Shielded Tent with Interior Vestibule



RF Shielded Tent Interior Vestibule

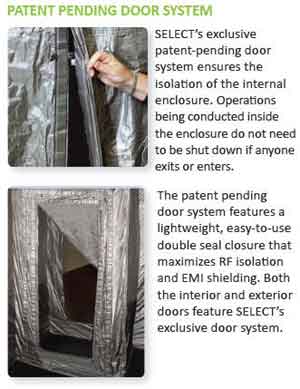

Patented Magnetic Door Seal System

Patented Door Systems
