TDK is the only company that manufactures both the ferrite tile and the complementary foam absorber.



This is both advantageous and critical for both low and high frequency performance, high power dissipation, and broadband behavior. TDK uses very sophisticated manufacturing techniques to create both our ferrite and our foam absorber materials. These techniques allow us to control every parameter of the materials which impact performance and safety. By adhering to strict quality production checks throughout the creation process, we can bypass many time consuming and unnecessary steps (e.g. having to measure each piece of absorber product for size tolerance and RF parametric compliance). The result is a much more efficient production process with a higher yield rate for absorber products.

In addition, the facilities in which these products are manufactured are completely managed under an ISO 9001 quality system and an ISO 14001 environmental management system. With over 300,000 m2 of production capability, TDK manages the largest such facilities worldwide.

True experience is developed over time. TDK commenced the first commercial production of ferrite in December of 1935; by September of 1968 our electromagnetic wave absorbers were being introduced. In subsequent years TDK pushed the development of anechoic materials and their applications. Developments including the first wedge-shaped absorber (popular for microwave measurements), the first polystyrene absorber (popular for clean room applications), the first oblique incidence absorber (microwave absorber treatment in specular regions), the first hollow absorber (tensile strength and thermal performance advantages), and a host of other innovations. Today this experience and pioneering innovation is still very much alive in the activities and designs which TDK brings to the table. With over 700 chambers installed globally, we can draw on our experience to make your vision a reality.



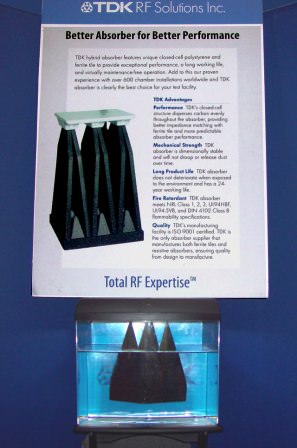

Can Your Absorber Survive This?

Material Safety Data Sheets





TDK Microwave Absorber Catalog





 EMC & RF Absorber Index

     White Ferrite Tile Wedge

Ferrite Tile

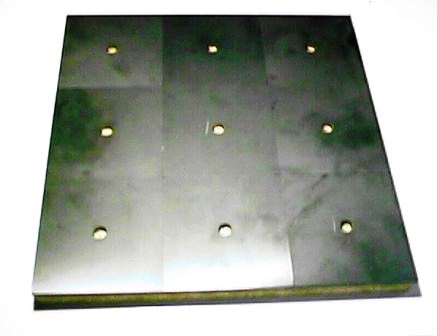

Ferrite Tile Panels

IP-045 Absorber >20dB, 30 MHz to 40 GHz

IP-090 Absorber >25dB, 30 MHz to 40 GHz

IP-130 Absorber >30dB, 30 MHz to 40 GHz

IS-080 Wide Band Absorber, 80 MHz to 18 GHz

IS-SM Oblique Incident Absorber, 300 MHz to 110 GHz

IS-Series Pyramidal Absorber, 200MHz to 120GHz



White Ferrite Tile Wedge Absorber


Model

Features

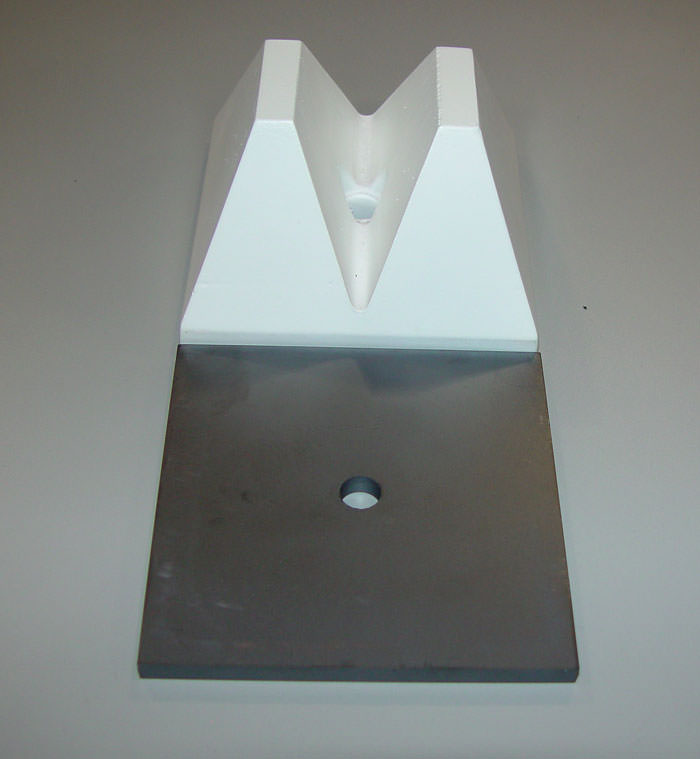

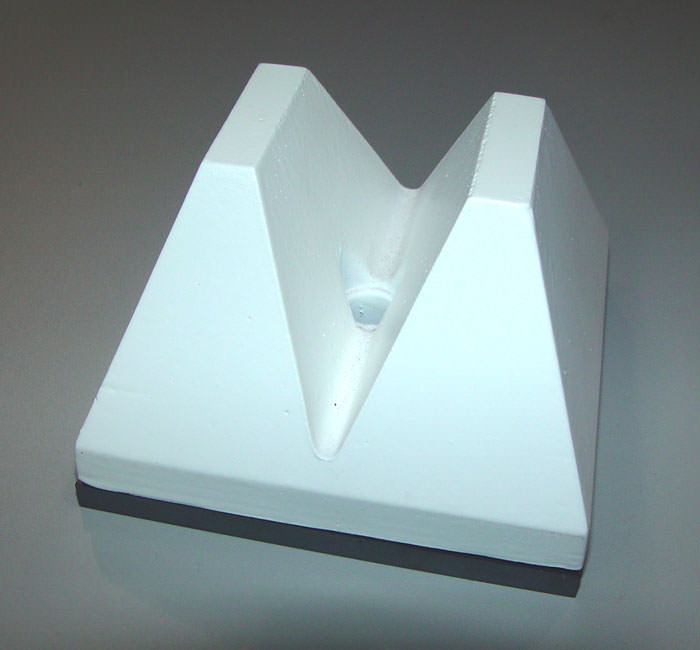

TDK ICM-006 Ferrite Wedge (Click to Enlarge)

TDK ICM System (Click to Enlarge)

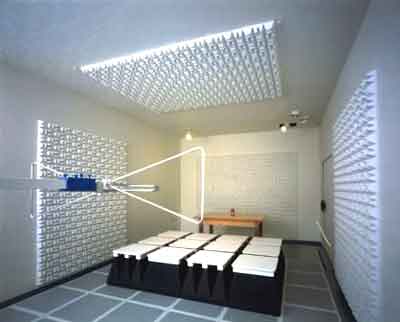

TDK EMC Compact Chamber (Click to Enlarge)





Ferrite Tile Absorber



 ICM-006



DATA



Complete ICM System <3" tall



ICM System = ICM-006 + IB-015

26 MHz to 18 GHz



Reflection Attenuation

  • Greater than 20dB

Frequency Range

  • 26 MHz to 18 GHz

Precision Molded

  • Eliminating Gaps

Physical and Chemical Characteristics

  • Dimensions:  100 mm x 100 mm x 6.0 cm (3.94" L x 3.94" W x 2 3/8" H)

  • System: requires the IB-015 ferrite tile underneath 100 mm x 100 mm x 6.3 mm  (3.94" L x 3.94" W x 0.25" H)



Ferrite Tile Absorber


Model

Features

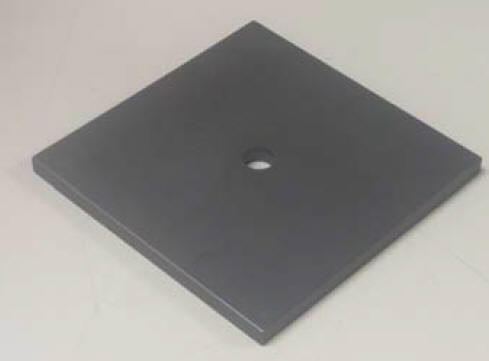

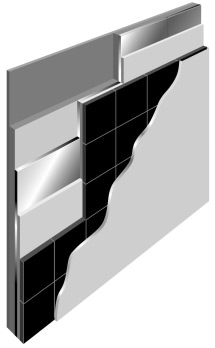

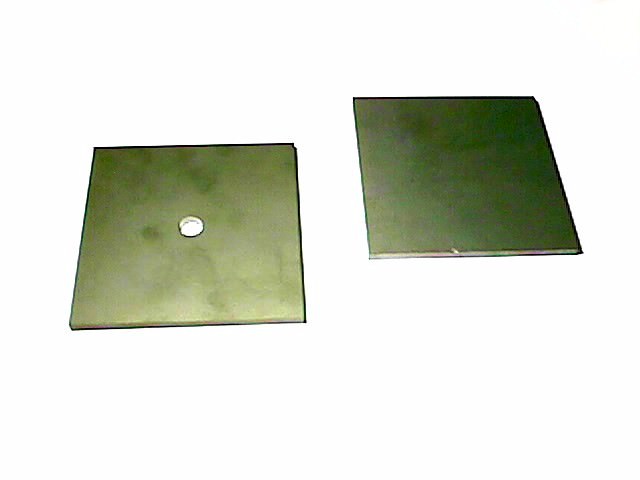

TDK IB-015 Ferrite Tile EMC Absorber









Ferrite Tile Absorber



 IB-017WH



Panels or

Loose Tile





DATA

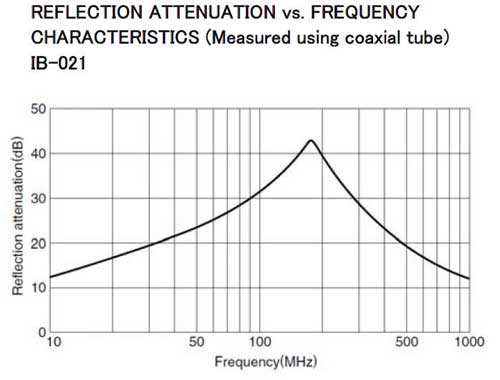

10 MHz to 1 GHz



Reflection Attenuation

  • Greater than 12dB

Frequency Range

  • 10 MHz to 1 GHz

Precision Ground

  • Eliminating Gaps

With Hole Only

Physical and Chemical Characteristics

  • Dimensions:  100 mm x 100 mm x 5.2 mm  (3.94" L x 3.94" W x 0.20" H)

  • Weight: 264 grams (0.582 lbs)

  • Bending Strength:  1.4 x 108 Pa

  • Tensile Strength:    3.1 x 109 Pa

  • Compression Hardness:  7.8 x 1010 Pa

  • Thermal Conductivity:  4 W/(m • K)

  • Specific Heat:  640 J/(kg • K)

  • Chemical Formula:  MO, Fe2, O3 (M: Metal)

  • Main hazards:  No explosion, flammability, reactivity or health hazard.

TDK IB-015 Ferrite Tile EMC Absorber



Ferrite Tile Absorber



 IB-015



Panels or

Loose Tile



DATA



Limited Stock

30 MHz to 1.2 GHz



Reflection Attenuation

  • Greater than 20dB

Frequency Range

  • 30 MHz to 1.2 GHz

Precision Ground

  • Eliminating Gaps

With or Without Hole

Physical and Chemical Characteristics

  • Dimensions:  100 mm x 100 mm x 6.3 mm  (3.94" L x 3.94" W x 0.25" H)

  • Density:  4.9

  • Young’s Modulus:  1.8 x 1012 g/cm · sec2

  • Bending Strength:  5.5 x 102 kg/m2

  • Tensile Strength:  45 kg/cm2

  • Compression Hardness:  2.4 x 103 kg/cm2

  • Vickers Hardness:  590

  • Wire Expansion Coefficient:  6 to 10 x 10-6

  • Thermal Conductivity:  1.5 x 10-2 cal/sec · cm · degrees C

  • Specific Heat:  0.2 cal/g · degrees C

  • Chemical Formula:  MO, Fe2, O3 (M: Metal)

  • Main hazards:  No explosion, flammability, reactivity or health hazard.



Ferrite Tile Absorber Panels


Model

Features

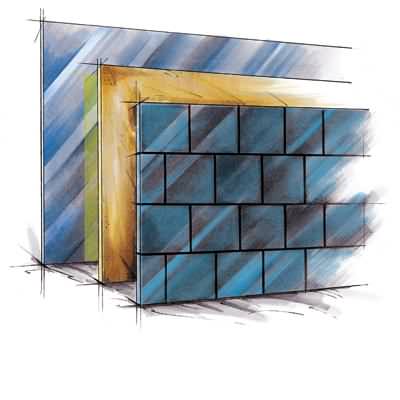

Ferrite Absorber

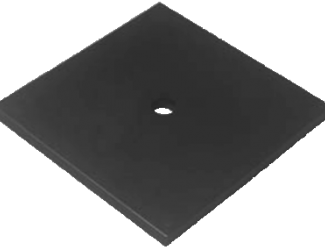

 IB-017

& Dielectric



Tile: 5.2mm



10 MHz to 1.0 GHz



DATA



Product Overview

TDK, the world's largest supplier of ferrite material, ferrite products and EMC components, is the undisputed leader in ferrite tile and cascade radio wave absorber technology. TDK developed the concept of ferrite tile as EMC radio wave absorbers, and has over 20 years experience in constructing anechoic chambers with ferrite tiles.

IB Material

This electromagnetic absorber utilizes the magnetic resonance loss characteristic of ferrite. This sintered ferrite has been baked at a temperature of over 1000°C and possesses physical properties equivalent to those of external porcelain titles.

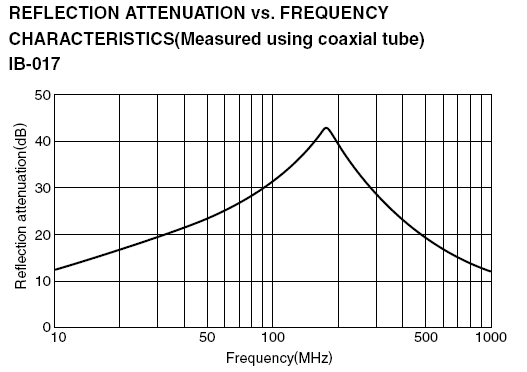

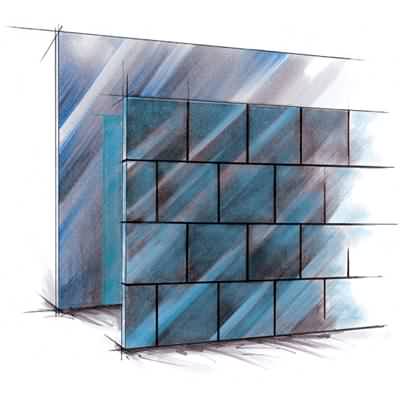

IB-017

This is a sintered ferrite and delivers excellent electromagnetic absorption performance particularly in the VHF band. This extremely thin electromagnetic absorber is 5.2mm thick.

Features

This is a thin-type wide-band electromagnetic absorber.
This is highly weather resistant.
Can be used as building material.


Physical and Chemical Characteristics

Standard Dimensions: 100 mm x 100 mm x 5.2 mm (4" L x 4" W x 0.20" H)

Standard weight: 260g

Bending Strength (Pa): 1.4 x 108

Tensile Strength (Pa): 3.1 x 109

Compression Hardness: 7.8 x 1010

Thermal Expansion Coefficient: 1.1 x 10-5

Thermal Conductivity: 4

Specific Heat (J/(kg * K)): 640

Chemical Formula: MO, Fe2, O3 (M: Metal)

Main hazards: No explosion, flammability, reactivity or health hazard.



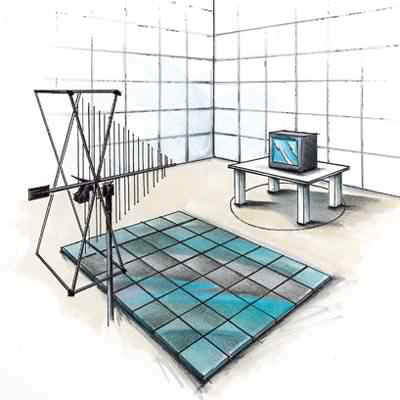

Ferrite Tile Floor Plate



Model: FP-2



DATA

26 MHz to 1 GHz



Constructed from a metal base, tuned dielectric material and TDK ferrite tiles IB-017

Compliant with IEC 1000-4-3

  • 26 MHz to 1 GHz



Finished with protective edges and rubber feet, FP-2 ferrite plate can be easily removed and handled.



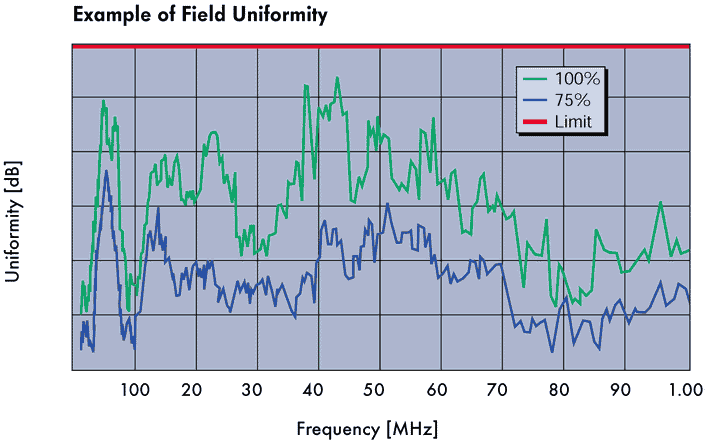

A full set (42 pieces) is placed on a reflective ground plane between the transmit antenna and EUT

FP-2 Characteristics

Dimensions: 600 mm long x 600 mm wide x 17 mm high
(23.6" L x 23.6" W x 0.7" H)

Weight: 20 kg (44 lbs.)





 Polystyrene Absorber (30 MHz to 40 GHz )


Model

Features

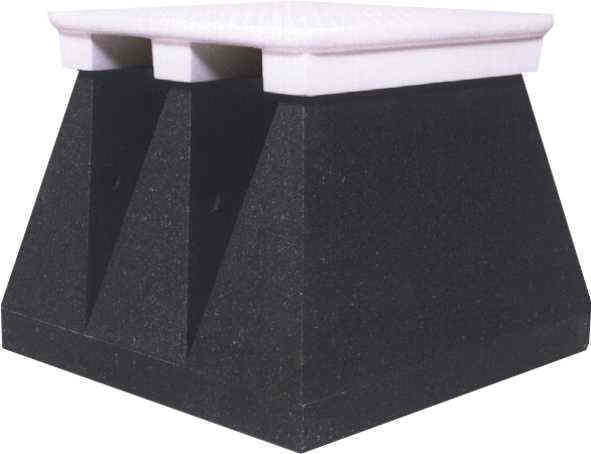

TDK IP-045C EMC Absorber



Wide Band Cascade Absorber


IP-045C



DATA

30 MHz to 40 GHz

The closed cell structure of the polystyrene produces an even and consistent carbon density throughout the absorber and enhances absorption performance.

Physical and Chemical Characteristics

  • Dimensions:  600 mm x 600 mm x 450 mm (23.6" L x 23.6" W x 17.7" H)

  • Basic Composition:  Closed Cell Styrofoam/ferrite tiles. Does not soil hands or clothes on contact.

  • Mechanical Strength:  4 kg/cm2 tensile strength. No damage to tips or tapers.

  • Humidity Resistance:  No deterioration with water. No hydrolysis effect.

  • Chemical Stability:  Not readily attacked by acids, alkalines and petroleum-based liquids.

  • Product Life:  30 years

  • Fire Retardency Certification:  NRL class 1, 2 and 3, UL 94 HBF, DIN 4102 class B



Polystyrene Absorber (30 MHz to 40 GHz )


Model

Features

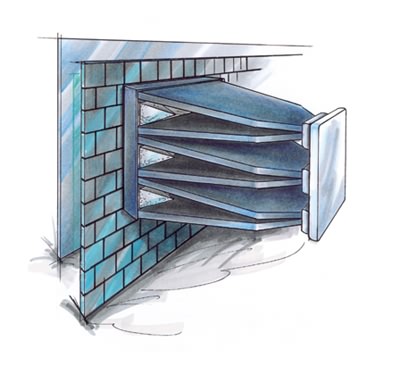

TDK IP-090 EMC Absorber

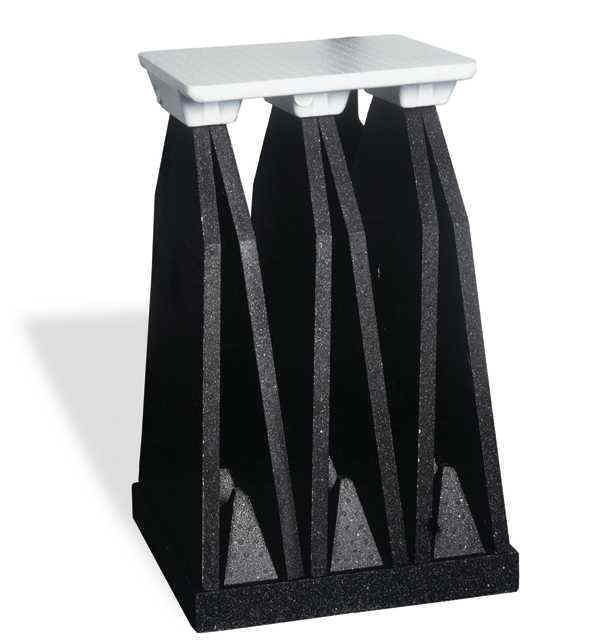

TDK IP-090 EMC Absorber Modular System



Wide Band Cascade Absorber


IP-090BL



DATA

30 MHz to 40 GHz

Reflection attenuation of greater than 25dB at the frequency range from 30 MHz to 2,000 MHz and 30dB from 20 GHz to 40 GHz

IP-090BL can achieve a deviation between theoretical NSA and measured NSA within ±3.5dB (ANSI C63.4 1992 & EN 50147-2).







Physical and Chemical Characteristics

  • Dimensions:  600 mm x 600 mm x 950 mm (23.6" L x 23.6" W x 37.4" H)

  • Basic Composition:  Closed Cell Styrofoam/ferrite tiles. Does not soil hands or clothes on contact.

  • Mechanical Strength:  4 kg/cm2 tensile strength. Lightweight 5.5 kg. No damage to tips or tapers.

  • Humidity Resistance:  No deterioration with water. No hydrolysis effect.

  • Chemical Stability:  Not readily attacked by acids, alkalines and petroleum-based liquids.

  • Product Life:  30 years

  • Fire Retardency Certification:  NRL class 1, 2 and 3, UL 94 HBF, DIN 4102 class B



Polystyrene Absorber (30 MHz to 40 GHz )


Model

Features

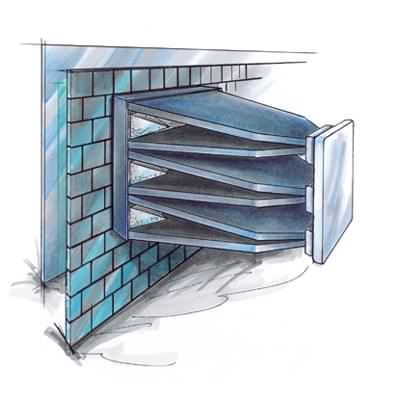

TDK IP-130 EMC Absorber



Wide Band Cascade Absorber


IP-130BL



DATA

30 MHz to 40 GHz

  • Reflection attenuation of greater than 30dB at the frequency range from 30 MHz to 2,000 MHz and 35dB from 20 GHz to 40 GHz

  • IP-130BL can achieve a deviation between theoretical NSA and measured NSA within < ±3.5dB (ANSI C63.4 1992 & EN 50147-2).

Physical and Chemical Characteristics

  • Dimensions:  600 mm x 600 mm x 1300 mm (23.6" L x 23.6" W x 51.2" H)

  • Basic Composition:  Closed cell Styrofoam/ferrite tiles. Does not soil hands or clothes on contact.

  • Mechanical Strength:  4 kg/cm2 tensile strength. No damage to tips or tapers.

  • Humidity Resistance:  No deterioration with water. No hydrolysis effect.

  • Chemical Stability:  Not readily attacked by acids, alkalines and petroleum-based liquids.

  • Product Life:  30 years

  • Fire Retardency Certification:  NRL class 1, 2 and 3, UL 94 HBF, DIN 4102 class B



Polyethylene Absorber (80 MHz to 18 GHz)


Model

Features

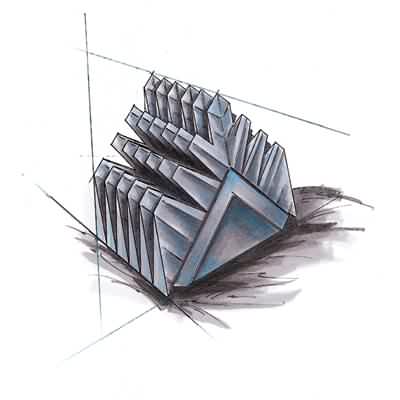

TDK IS-080 Oblique EMC Absorber



Oblique Incident Absorber


IS-080S



DATA

80 MHz to 18 GHz

When a full set of 15 pieces is placed on a reflective ground plane between the transmit antenna and the EUT (equipment under test), the IS-080S absorber converts a 3 meter test range semi-anechoic chamber into a facility capable of performing all susceptibility and radiated immunity measurements, in full compliance with IEC 1000-4-3 in the frequency range from 80 MHz to 18 GHz.

TDK IS-80 Microwave Absorber

Physical and Chemical Characteristics

  • Dimensions:  840 mm x 600 mm x 780 mm (33" L x 23.6" W x 30.7" H)

  • Basic Composition:  Closed cell polyethylene. Does not soil hands or clothes on contact.

  • Tensile Strength:  4 kg/cm2. Good mechanical strength. No tips breaking.

  • Humidity Resistance:  No deterioration with water. No hydrolysis effect.

  • Product Life:  30 years

  • Fire Retardency Certification:  NRL class 1, 2 and 3, UL 94 HBF, DIN 4102 class B



Polyethylene Absorber (300 MHz to 110 GHz)


Model

Features

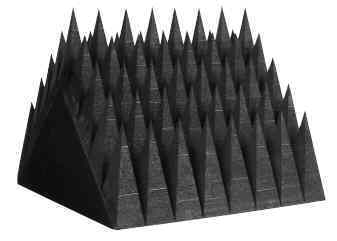

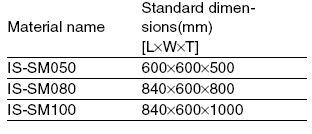

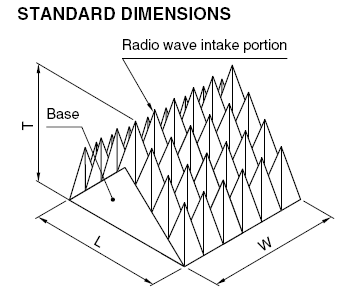

TDK IS-SM Oblique EMC Absorber







Oblique Incident Absorber






IS-SMxxx





DATA

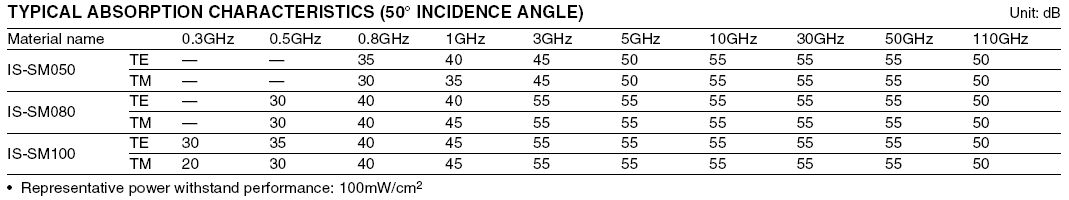

300 MHz to 110 GHz

  • Ultra-wideband electromagnetic absorber

  • Excellent electromagnetic absorption performance for oblique
    incidences.

  • The product can be made thinner than pyramidal absorbers.

  • The tip is designed to reduce creep and deliver stable performance.

  • Stable against chemicals and offers long service life.

  • Uses materials that, when burned, emit gases that are relatively
    harmless to humans.

  • Fire retardant (NRL Classes 1, 2 and 3; UL-94HBF).







 Polyethylene Absorber (200 MHz to 120 GHz)


Model

Features

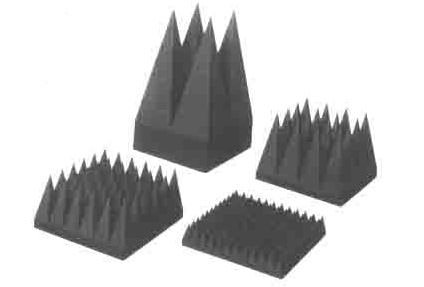

TDK IS Series Closed Cell Microwave Absorber



Microwave

Pyramidal

Absorber


IS-Series



DATA



200 MHz to 120 GHz



bullet

Up to 120 GHz verified operation

bullet

700 W/m2 power handling

bullet

Clean room rated

bullet

Closed cell polyethylene construction

bullet

Numerically optimized shape & carbon loading

bullet

UL Listed

bullet

Fire retardant

bullet

High tensile strength

bullet

Waterproof

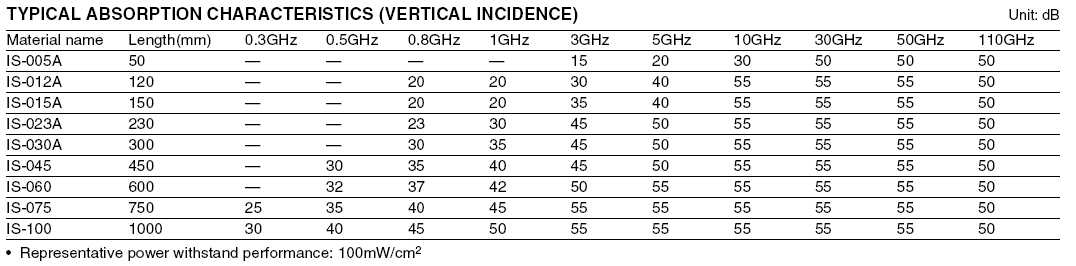

SPECIFICATIONS

   Absorber

Clean Room

Fire

Tensile

Max. Power

Product

Humidity

Absorber

Absorber

Absorber

   Model

Rating

Retardancy

Stability

Density

Life

Resistance

Footprint

Height

Weight

   IS-005A

FS 209E

Class 100



ISO 14644-1

Class 5

UL94HBF



NRL 8093

Test 1, 2 & 3

4 kg/cm2

< 500 V/m,

700 W/m 2



Core Temperature

< 100

>30 years

Closed-cell Polyethylene

No deterioration from water.

No hydrolysis effect.

60 cm

x

 60 cm

5 cm

0.8 kg

   IS-012A

12 cm

1.3 kg

   IS-015A

15 cm

1.8 kg

   IS-023A

23 cm

2.0 kg

   IS-030A

30 cm

3.0 kg

   IS-045

45 cm

4.0 kg

   IS-060

60 cm

6.0 kg

   IS-075

75 cm

8.0 kg

   IS-100

100 cm

10.0 kg
