E-Field Antennas and Generators

 TDK RF Solutions    Innco Systems

TDK RF Solutions is a world leader in the design, development, and manufacture of technical solutions for the electromagnetic compatibility testing industry. We offer a complete range of solutions, including automated test systems, TDK anechoic chambers, software, antennas, and a wide range of test products. We call it Total System Technology, and it means TDK RF Solutions is your best choice of partner for proven solutions and services backed by internal technical expertise.



E-Field Generators Index

E-Field Generators

Strip Lines

TEM Cells & Tri-Plates

Test Tables & Benches



E-Field Generators

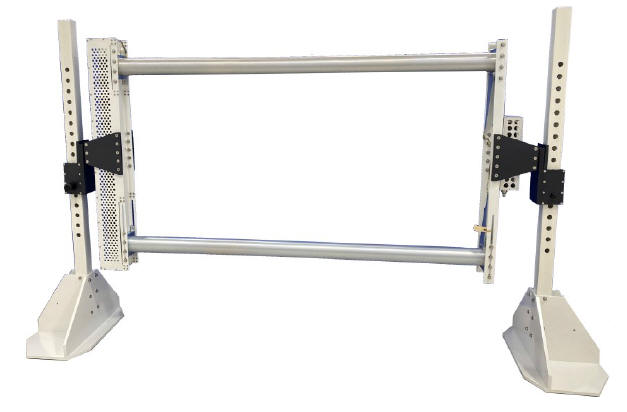

E-Field Generator



Model EFG-02





E-Field Generator (EFG-02)



10 kHz - 100 MHz



3,500 Watts CW



500 V/m RMS



Data





High Power E-Field generator



10kHz 100 MHz operating range



Up to 500 V/m RMS



Low VSWR



Adjustable height for optimizing performance



Performance
The TDK RF Solutions EFG-02 is a transmission-line type electric/magnetic field generator which provides an unprecedented level of flexibility in the generation of controlled, high-intensity electric and magnetic fields over the frequency range of 10 kHz to 100 MHz. It is capable of generating over 500 V/m over its entire operating frequency range using 2.5 kW amplifier and provides a large uniform field area, thus accommodating a very large variety of DUTs.

Non-Radiating
Because the EFG-02 is a non-radiating device, the electric and magnetic fields are essentially confined to the DUT area. Also, it provides extremely low VSWR over its entire operating range thus reducing stress on the amplifier.

Unique Design
The unique mechanical design of the EFG-02 greatly facilitates the characterization of unwieldy DUTs. Large or bulky DUTs can simply be wheeled or placed under the system with the aid of equipment (such as a pallet jack or forklift).

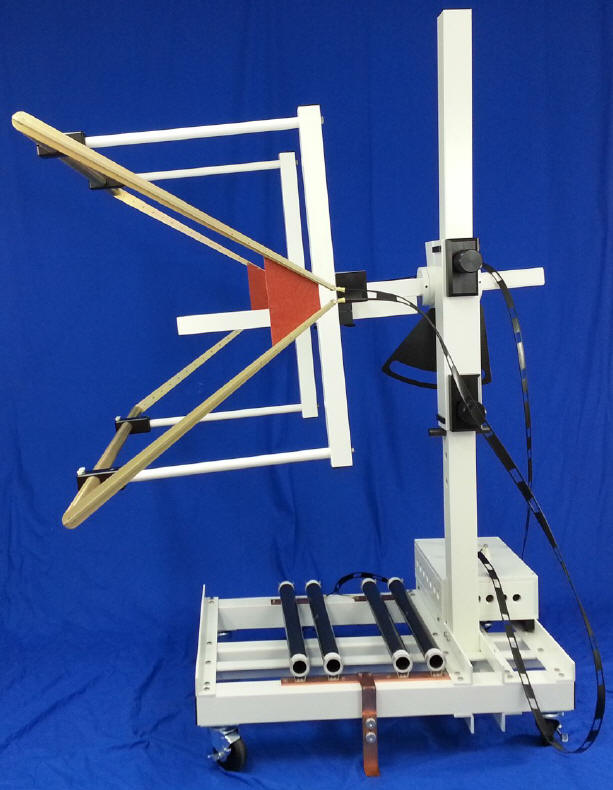

E-Field Generator



 Model EFG-03



EFG-03 E-Field Generator



10 kHz - 100 MHz



3,500 Watts CW



500 V/m



Data





10kHz 100 MHz operating range



High intensity E-Field generator



Generates greater than 500 V/m



Low VSWR



Adjustable height for optimizing performance



Performance
The TDK RF Solutions EFG-03 is an E-field generator designed to produce controlled, high intensity electric fields over the frequency range of 10 kHz to 100 MHz. The EFG-03 generates a minimum of 500 V/m between the elements. Its capability to handle high input power and its low VSWR makes the EFG-03 a powerful and effective E-field generator.

High Input Power
The EFG-03 utilizes an external load that permits the field generator to handle input power up to 3500 Watts (continuous) without the use of forced air or water cooling. This makes the EFG-03 ideal for immunity test applications which require high input power, high intensity fields in a compact design.

Robust Design
The EFG-03 features an extremely robust transformer design which greatly improves the low frequency response.

Complete Positioning Control
The EFG-03's integrated mast provides complete manual control of height, tilt, and polarization. The EFG-03's positioning gimbal allows manual control of tilt to 10 and provides full 360 rotation of the EFG-03 with indexing at 0 and 90 for quick and easy polarization changes. A locking pin secures the mounting arm in position. The EFG-03's mast, base, and mounting arm are constructed of heavy-duty square fiberglass tubing with a protective water seal. The mast features four locking swivel casters for safety and ease of movement.





Strip Lines



15cm Strip Line



Model STL-01 (50 W)

Model STL-01/01A (90 W)



Strip Line Antenna



TEM mode: 10 kHz - 220 MHz

Multi-mode: 220 - 1000 MHz


Data



Excellent TEM mode behavior



Extended use for multi-mode testing



Good longitudinal uniformity




80cm Strip Line



Model STL-02



Strip Line Antenna



100 W



TEM mode: DC - 220 MHz

Multi-mode: 220 - 1000 MHz


Data



Excellent TEM mode behavior



Extended use for multi-mode testing



Good longitudinal uniformity



Broadcast receiver testing



Automotive testing



EMC testing




2.1m Strip Line



Model STL-03



Strip Line



DC - 25 MHz

5 kW & 10 kW



Data



Excellent TEM mode behavior



Extended use for multi-mode testing



Good longitudinal uniformity



Aerospace testing



Automotive testing



EMC testing



TEM Cell & Tri-Plate



TEM Cell Webpage





Tri-Plate and Table



Model TP-02

Tri Plate



DC - 500 MHz

DC - 1 GHz



Data



Excellent linear response



Designed to SAE specifications



Capable of handling high power



Integrated test table



Immunity measurements to automotive test regulations



Test Tables and Benches

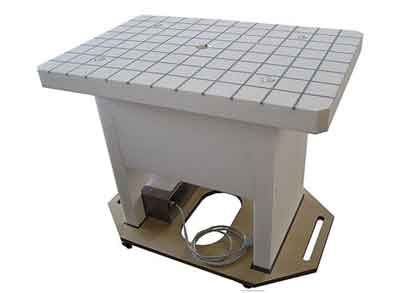

Test Table



Model TSTT-01



Nonconductive Test Table



Data



Surface Options The table is available with a wooden top for a non-conducting surface required for radiated emissions or immunity tests or a galvanized metal top for a conducting grounded surface for conducted test measurements.

Mobility Commercial grade, lockable casters make the table easy to move within the test facility.

  • EMC measurements

  • CISPR testing

  • Automotive testing

  • Testing to military standards

  • Conducting and non-conducting surface top

  • Fiberglass construction

  • Lockable casters for mobility

  • Custom sizes available as an Option




Test Table

Model PT-SD

Styrofoam EMC Test Table

PT1208-SD

PT1510-SD

PT1810-SD


Innco Systems



Key Facts

Made of Styrofoam

Dielectric constant εr 1.2 at 1 MHz




Test Table

Model PT-RH


Rohacell EMC Test Table

PT1208-RH

PT1510-RH

PT1810-RH


Innco Systems

Key Facts

Made of Rohacell

Dielectric constant εr 1.04 at 1 MHz




Projection Screen PL


EMC Project Screen

PL100

Innco Systems

Key Facts

Made of PVC and fibre glass
