Communication and Narrow Band Amplifiers

OPHIR RF Communication and Band Specific Amplifiers Modules

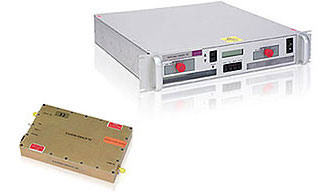

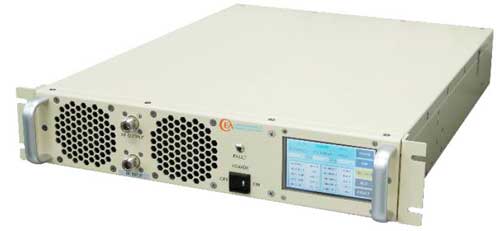

OPHIR RF Communication Amplifiers

OPHIR RF designs and manufactures high power, solid state, communication, Broadband RF, Microwave and band-specific amplifiers.  Our products range in frequency from 10 kHz to 8 GHz, with power levels from 1 Watt to above 2000 Watts. Wireless communication markets served include infrastructure (base stations/repeaters) for cellular, SMR, Paging, PCS, WLAN, WiFi, WiMax, RFID, BlueTooth and wireless local loop as well as satellite communication, frequency relocation and multipoint distribution service.

Manufactured and Serviced in Los Angeles, CA USA







 2 Year Parts & Labor Warranty

On All

Amplifier Systems & Amplifier Modules

GSA Federal Supply Contract
      Visa Accepted   MasterCard Accepted



Design Your Own Amplifier   Ethernet Interface



Communication & Narrow-Band Amplifiers & Amplifier Modules

Sorted by Frequency Range - Click Model Number for Data file (.pdf)

Amplifier

Model

Number 2

Module

Model

Number 2

Frequency

Range

CW

Output

(Saturated)

Linear

Output

( P1dB)

Gain

dB

-

5302042

0.5 - 2 MHz

30 Watts

20 Watts

45 dB

4035

-

2 - 30 MHz

100 Watts

60 Watts

50 dB

4041

-

2 - 30 MHz

300 Watts

200 Watts

59 dB

4042

-

2 - 30 MHz

500 Watts

300 Watts

57 dB

4043

-

2 - 30 MHz

1000 Watts

600 Watts

60 dB

4044

-

2 - 30 MHz

2000 Watts

1200 Watts

63 dB

-

5302048A

70 - 108 MHz

40 Watts

25 Watts

45 dB

4012

-

290 - 320 MHz

250 Watts

200 Watts

54 dB

4039R - 292 - 320 MHz

250 Watts

200 Watts

54 dB

4007-004 350 - 400 MHz 1000 Watts 600 Watts 62 dB

4034

-

400 - 450 MHz

250 Watts

150 Watts

55 dB

4007

-

400 - 450 MHz

1000 Watts

600 Watts

62 dB

-

5302022

800 - 1000 MHz

12 Watts

10 Watts

45 dB

-

5302063

800 - 1000 MHz

40 Watts

25 Watts

44 dB

-

5302075

800 - 1000 GHz

40 Watts

30 Watts

50 dB

4015

-

800 - 1000 MHz

50 Watts

30 Watts

48 dB

4014

-

800 - 1000 MHz

100 Watts

60 Watts

51 dB

4009

-

800 - 1000 MHz

200 Watts

100 Watts

54 dB

Amplifier

Module

Frequency

CW

Linear

Gain

4008

-

950 - 1350 MHz

15 Watts

12 Watts

42 dB

4045

-

950 - 1450 MHz

60 Watts

40 Watts

49 dB

4040

-

950 - 1215 MHz

200 Watts

150 Watts

54 dB

-

5302023

960 - 1215 MHz

10 Watts

8 Watts

45 dB

4056 1175 - 1675 MHz 500 Watts - 58 dB

-

5302024

1.2 - 1.6 GHz

10 Watts

8 Watts

43 dB



5302380

1.2 - 1.6 GHz

20 Watts

15 Watts

44 dB

4046-002 1270 - 1310 MHz

300 Watts

240 Watts

56 dB

4046-003 1270 - 1310 MHz

500 Watts

350 Watts

58 dB

-

5302026

1.6 - 1.8 GHz

12 Watts

10 Watts

45 dB

-

5302027

1.8 - 2.0 GHz

12 Watts

10 Watts

45 dB

-

5302030

1.8 - 2.0 GHz

40 Watts

35 Watts

45 dB

-

5302034

1.8 - 2.0 GHz

60 Watts

50 Watts

50 dB

-

5302029

1.8 - 2.0 GHz

80 Watts

60 Watts

51 dB

4003

-

1.8 - 2.0 GHz

120 Watts

100 Watts

52 dB

-

5302031

1.8 - 2.0 GHz

150 Watts

120 Watts

53 dB

4064

1.8 - 2.5 GHz

60 Watts

50 Watts

49 dB

4062

-

1.85 - 2.17 GHz

60 Watts

45 Watts

50 dB

4060

-

1.85 - 2.17 GHz

120 Watts

100 Watts

53 dB

4061

-

1.85 - 2.17 GHz

200 Watts

160 Watts

53 dB

5190

2.0 - 6.0 GHz

9 Watts

6 Watts

40 dB

5191

2.0 - 6.0 GHz

15 Watts

10 Watts

43 dB

5192

2.0 - 6.0 GHz

25 Watts

15 Watts

45 dB

5193

2.0 - 6.0 GHz

50 Watts

30 Watts

50 dB

4021

-

2.2 - 2.4 GHz

12 Watts

10 Watts

40 dB

Amplifier

Module

Frequency

CW

Linear

Gain

-

5302019

2.2 - 2.5 GHz

60 Watts

50 Watts

48 dB

-

5302053

2.4 - 2.5 GHz

2 Watts

1.5 Watts

34 dB

-

5302054

2.4 - 2.5 GHz

5 Watts

4 Watts

38 dB

4057

5302015

2.4 - 2.5 GHz

10 Watts

8 Watts

41 dB

4058

-

2.4 - 2.5 GHz

50 Watts

40 Watts

48 dB

4066

2.4 - 2.5 GHz

300 Watts 150 Watts 56 dB

-

-

2.5 - 2.7 GHz

30 Watts

25 Watts

44 dB

-

-

2.5 - 2.7 GHz

115 Watts

100 Watts

51 dB

4022

-

2.7 - 3.2 GHz

200 Watts

150 Watts

54 dB

-

5302055

3.5 - 3.6 GHz

2 Watts

1.5 Watts

34 dB

-

5302056

3.5 - 3.6 GHz

5 Watts

4 Watts

38 dB

-

5302073

5.9 - 6.4 GHz

12 Watts

10 Watts

41 dB

4073

-

5.9 - 6.4 GHz

12 Watts

10 Watts

45 dB

4074

-

5.9 - 6.4 GHz

30 Watts

25 Watts

48 dB

-

5302074

5.9 - 6.4 GHz

35 Watts

25 Watts

47 dB



Amplifier Options

Option

Description

Specific

Option E

Front panel digital display, forward and reverse power readings, gain adjustment, ALC on/off, fault indication, standby mode, and rear panel IEEE-488 HPIB, inclusive

Installed at Time of Order or Retrofit

Option F

Front Panel Connectors

Standard

Option R

Rear Panel Connectors

No Charge if Installed at Time of Order

Option S

Rack Mounting Slides



Option T

Ethernet Interface, Requires Option E above

Installed at Time of Order or Retrofit



Part Number

Amplifier Module Options

530xxxx

-Stand-alone module (part number is 530XXXX)

590xxxx

-Module mounted on Heatsink (part number is 590XXXX)

580xxxx

-Module mounted on Heatsink with fans (part number is 580XXXX)
