  Antenna Positioners

Steatite Q-par Logo


Portable Antenna Positioner


Model

Features



Portable Antenna Positioner

Portable Positioner



Light weight, 3-axis, easily transportable, rapid assembly antenna positioner.





Model Number D415





DATA







  • Highest quality, precision, three-axis positioning
  • Fully tailored to customer specification
  • Designed to fit (when disassembled) into a standard sized suitcase
  • Excellent for ease of transport and covert operation
  • Also available in a larger case, encompassing dish & feed cables, with room for a laptop or PDA
  • Ideal as a surveillance antenna system, tracking and SIGINT
  • Can be used for many other signal collection/tracking purposes
  • Many different types of control can be utilized, including PDA/handheld terminal, laptop, fibre-optic interface and PC
  • Variable scan, sector scan, etc. are available with an optional GUI, or can be programmed by the user
  • Can take up to a 0.6m (2ft) dish for antennas up to and including millimeter-wave
  • Other feeds, including RHCP & LHCP, and different reflector sizes can provided

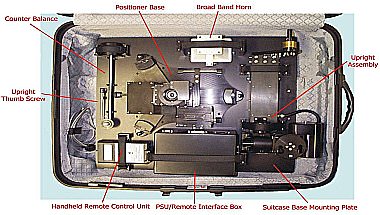

    Portable Antenna in Case

    Positioner in Suitcase





    Positioner Controll

    Positioner Controller

ELINT Antenna Positioners


Model

Features

System Features

  • 0.5 - 18 GHz, 2 - 18 GHz, and 1 - 18 GHz standard versions
  • Many antenna / reflector - feed combinations are available to cover your frequency bands of interest with your gain / beamwidth requirements.
  • Computer controlled via a single RS232/USB or Ethernet connection
  • Positioner is provided with our user friendly GUI (graphical user interface) Windows application, Linux available on request
  • The control software allows different modes of operation, these include continuous rotation, sector scan, stare and nudge.
  • Capable of complex scan control
  • Can be Peltier cooled for demanding environments
  • Dry air system can be used
  • The system is housed within an environmentally sealed radome for outdoor use.
  • Custom designs our speciality
Our rugged computer controlled single axis system is ideal for ELINT broadband surveillance. The system is capable of complex scan control with rotation speeds of up to 200 rpm.

Positioner Features

  • High Rotation Speed Possible
  • Velocity Maximum 200 rpm / 1200 per second
  • Velocity Minimum 0.06 rpm / 0.36 per second
  • Acceleration Maximum 50 rpm/s
  • Continuous Rotation
  • Sector Scan Maximum 360
  • Sector Scan Minimum 0.1
  • Point and Stare 0.1 increments
  • Nudge 0.1 - 360
  • 14 bit Resolution

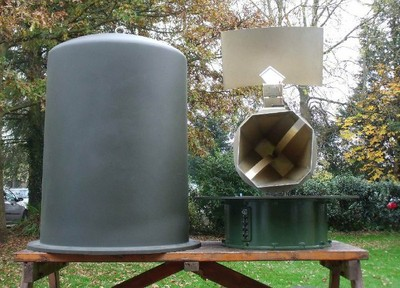

0.5 - 18 GHz ELINT 0.5 - 18 GHz
ELINT Antenna Positioner


DATA
Frequency
0.5 - 18 GHz
Gain 6 - 20 dBi
Antenna Type
Reflector & Horn
Polarization
Slant Linear 45
Azimuth Beamwidth 90 - 3
Elevation Beamwidth 66 - 20
VSWR
< 2 : 1 typical
Angular Resolution < 0.1
Rotational Velocity 200 rpm max.
Weight 90 kg (inc. Radome)
Height
1450 mm
Diameter 910 mm
Construction Base: Cast Aluminium Alloy
Radome: Foam Cored GRP

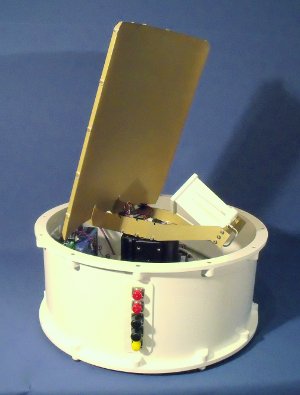

1-18 ELINT 1 - 18 GHz
ELINT Antenna Positioner



DATA

1-18GHz ELINT with Radome
Frequency 1 - 18 GHz
Gain 10 - 23 dBi
Type of Antenna
Cylindrical Paraboloid
Polarization
Slant Linear 45
Azimuth Beamwidth 33 - 3
Elevation Beamwidth 42 - 20
VSWR
< 2 : 1 typical
Angular Resolution < 0.1
Rotational Velocity 200 rpm max.
Weight 56 kg (inc. Radome)
Height
905 mm
Diameter 605 mm
Construction Base: Cast Aluminium Alloy
Radome: Foam Cored GRP

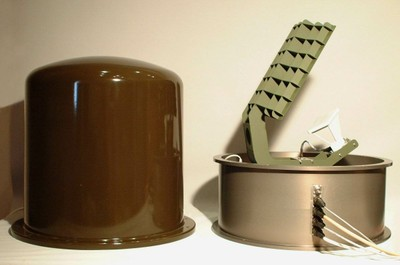

2 - 18 GHz ELINT 2 - 18 GHz
ELINT Antenna Positioner


DATA
Frequency 2 - 18 GHz
Gain 13 - 24 dBi
Antenna Type
Cylindrical paraboloid
Polarization
Slant Linear 45
Azimuth Beamwidth 30 - 4
Elevation Beamwidth
35 - 20
VSWR
< 2.5:1 typical
Angular Resolution < 0.1
Rotational Velocity 200 rpm max.
Weight 56 kg (inc. Radome)
Height
800 mm
Diameter 605 mm
Construction Base: Cast Aluminium Alloy
Radome: Foam Cored GRP

Bespoke Antenna Positioners


Model

Features

Model 100 All Weather Positioner


Built to the very highest standards, this was the standard version of the positioner from the All Weather Antenna Positioner family. It was designed to operate with reflectors of up to 2m in diameter.

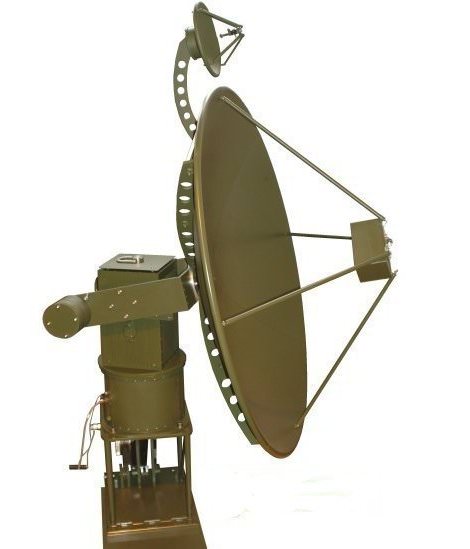

Model 100



DATA



  • The positioner can cover 'whole sky' and can be used for surveillance, tracking and SIGINT as well as other signal/tracking purposes.
  • Can operate with reflectors of up to 2m in diameter.
  • Other feeds, including RHCP & LHCP, and different reflector sizes can be supplied.
  • Available with an extra locking button on the elevation, designed to lock the yoke vertically when using the positioner in high wind situations.
  • Equipped with brakes on all axes in case of power failure.
  • A Servo Controller Unit is used for each axis. The positioner is controlled via a single RS232 connection which is primarily designed to be controlled by our Graphic User Interface (GUI). Other interfaces such as USB, Network and Handheld controllers are available on request.
  • Positioner can also be fitted with heaters, Peltier coolers and/or air dryer, if required for demanding weather conditions.

Typical Specification

Specification Units
Positioner Movement, Azimuth +/- 190 degrees
or +/- 360 degrees continuous
Positioner Movement, Elevation -15 to +90 degrees
Positioner Movement, Polarization 360 degrees [optional unit]
Velocity, Azimuth 2.3 to 21.4 degrees/sec [dependent on model]
Velocity, Elevation 2.3 to 21.4 degrees/sec [dependent on model]
Velocity, Polarisation TBC degrees/sec
Max Output / Drive Torque 2.3 - 2.5 kNm
Positioner Weight 150+ kg [dependent on model]
Accuracy 0.02 degrees

Fully tailored to customer specification
Model 200 Positioner

Model 200 side   Model 200 rear
All Weather
Enhanced Antenna Positioner

This positioner design has all of the virtues of the all weather series, but with more than twice the torque. This enabled a greater variety of antenna solutions to be considered. This positioner was designed specifically to house an array of reflectors.

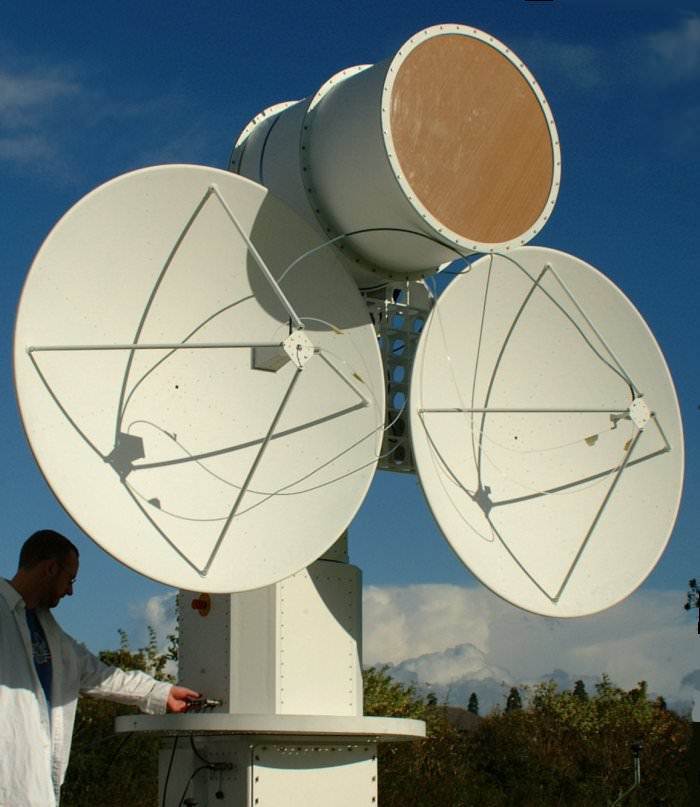

Model 200


DATA
  • Optical tracking
  • Example shows an array of two 1.4m (2-6 GHz, 6-18 GHz) reflectors and one 0.6m (2-18 GHz) antenna reflector
  • Touch Screen control
  • Other feeds, including RHCP & LHCP, and different reflector sizes can be supplied
  • Environmentally sealed
  • Equipped with brakes on all axes in occurrence of power failure

Typical Specification

Specification Units
Positioner Movement, Azimuth +/- 150 degrees
or +/- 360 degrees continuous
Positioner Movement, Elevation -10 to +90 degrees
Positioner Movement, Polarisation +/- 90 degrees [optional unit]
Velocity, Azimuth 10 degrees/sec
Velocity, Elevation 10 degrees/sec
Velocity, Polarisation TBA degrees/sec [dependent on model]
Max Output / Drive Torque, Azimuth
4.9 kNm
Max Output / Drive Torque, Elevation
7 kNm
Positioner Weight including antenna array
750 kg
Accuracy +/-0.02 degrees
Fully tailored to customer specification

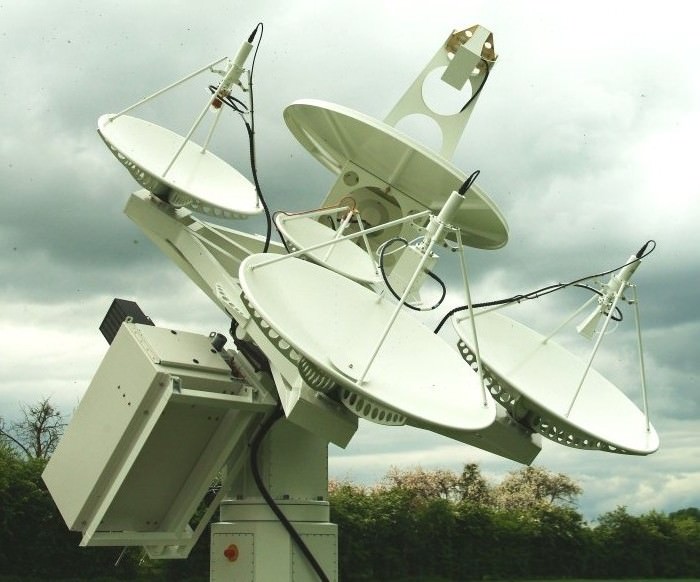

Model 300
  • Full Sky Coverage
  • Full Software Control and Management
  • Rack-mounted Touch Screen with easy to use GUI
  • Interchangeable Antennas
  • Easy Servicing - using Modular COTS Components
  • Automatic Target Acquisition and Optical Tracking
  • High number of Antenna & Mechanical/Control Options Available
  • Extensive Failsafe Mechanisms

Typical Specification

Specification Units
Positioner Movement, Azimuth +/- 190 degrees
Positioner Movement, Elevation -15 to +90 degrees
Positioner Movement, Polarisation +/- 67.5 degrees
Velocity, Azimuth 12 degrees/sec
Velocity, Elevation 12 degrees/sec
Load Capability
250 kg (counter-balanced)
Max Output / Drive Torque, Azimuth
4.9 kNm (upwards)
Max Output / Drive Torque, Elevation
7 kNm
Positioner Weight including antenna array
1,400 kg
Accuracy +/-0.025 degrees
Operating Temperature Range
-35 to +40C

Fully tailored to customer specification

All Weather
Heavy Duty Antenna Positioner

This is a heavy duty, fully environmentally hardened antenna positioning system. it was designed specifically for larger antenna arrays where positioning speed and precise angular accuracy are of the utmost importance.

Model 300


DATA



Tracking Camera
Optical Tracking Camera



Motorixed
Motorized Polarization

This positioner was designed to be operated in a wide range of environmental conditions. To achieve this performance exceptional care was taken in tailoring the design of this positioner to the particular requirements of its customer.

The positioner body is designed for the minimum weight commensurate with the strength and ruggedness required for an all-weather unit. The main body of the positioner forms a sealed enclosure, with rotating weather seals for both the elevation and azimuth motions. The positioner can be fed with dry air, or supplied with passive dehumidification devices. A heat shield covers the top of the positioner, minimizing the heating effect of direct overheat solar radiation.

The azimuth and elevation drive speed was set according to the customer's demand. The system in the configuration shown, is capable of tracking, at a range of 1 nautical mile aircraft at speeds in excess of Mach 1.2.

The positioner incorporates an automatic guidance facility that utilizes a high resolution, IR capable, camera to both locate and track targets.

The internal design of the positioner is the result of many years of experience and development. High quality electrical servo motors drive through zero-backlash cycling-plate gearboxes and high quality final drive gears to give a accurate and controllable drive train in all axes. Drive motor torques and gear ratios are selected to achieve the slew rates and pointing accuracy required for each particular application. Axis position information is detected using high quality multi-bit digital encoders of appropriate accuracy. Factory set electro-mechanical stops are used to limit the positioner travel, for example, to prevent damage to an antenna dish. Electromagnetic brakes are incorporated to lock all axes in the event of power supply failure. Stowage pins are supplied to immobilise the positioner when not in use.

The antenna yoke is usually supplied with counterbalance masses to match the antenna to be used.

A rigid plinth was supplied to raise the positioner to a height appropriate to the diameter of the dish being used. This is configured as a weather-proof enclosure to house the Air Drying Unit.

All parts of the positioner and plinth are treated with protective finishes (anodizing, paint finishes as appropriate) to give corrosion resistance thus ensuring a long trouble-free service life.

The positioner can be operated from a standard PC or laptop using our standard GUI Control; an handheld controller unit was also supplied to customer requirements. Both the GUI and the handheld controller can operate the positioner up to 1 km away.

Antenna Positioner Controller


Model

Features

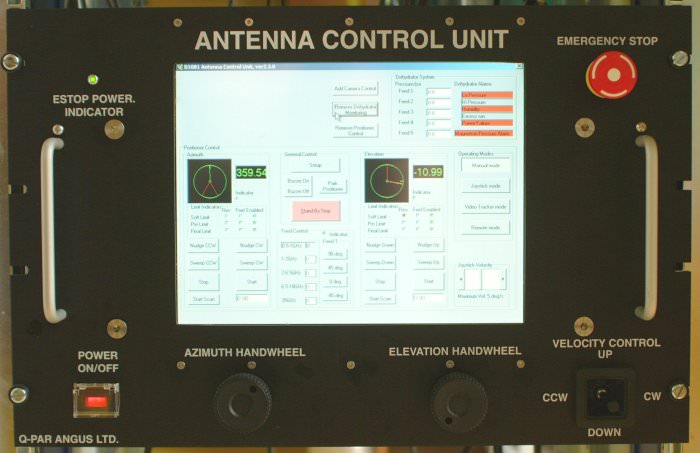

Antenna Controller

Generic Antenna Control Unit
Positioner Controller

Q-par Angus designs and develops its Antenna Controller Units fully in house, offering a very high degree of flexibility to the customer in the control and indication options available.

The antenna control unit is a 19 rack mount unit based around a Windows XP Professional operating system. Incorporating a 12 touch screen, the ACU provides control and monitoring of the whole antenna system. A Linux based system is also available.

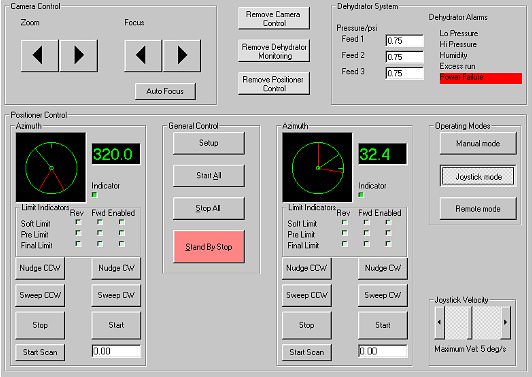

The unit shown includes Camera Control, Joystick Mode, Optical Tracking and Standard 2-Axis Positioner Control from a PC or handheld device.

Features

  • Independent Control of multiple positioners
  • Surveillance and sector scan available
  • Optical Tracking option available
  • Joystick mode available
  • RS232 Serial Port or Ethernet connection available
  • Handheld or PDA Remote Control option available
  • Touch screen option available
  • Dehydration Monitoring option available

We are always happy to discuss specialist or bespoke requirements on our range of Antenna Positioners, Control Units & Software Interfaces.
